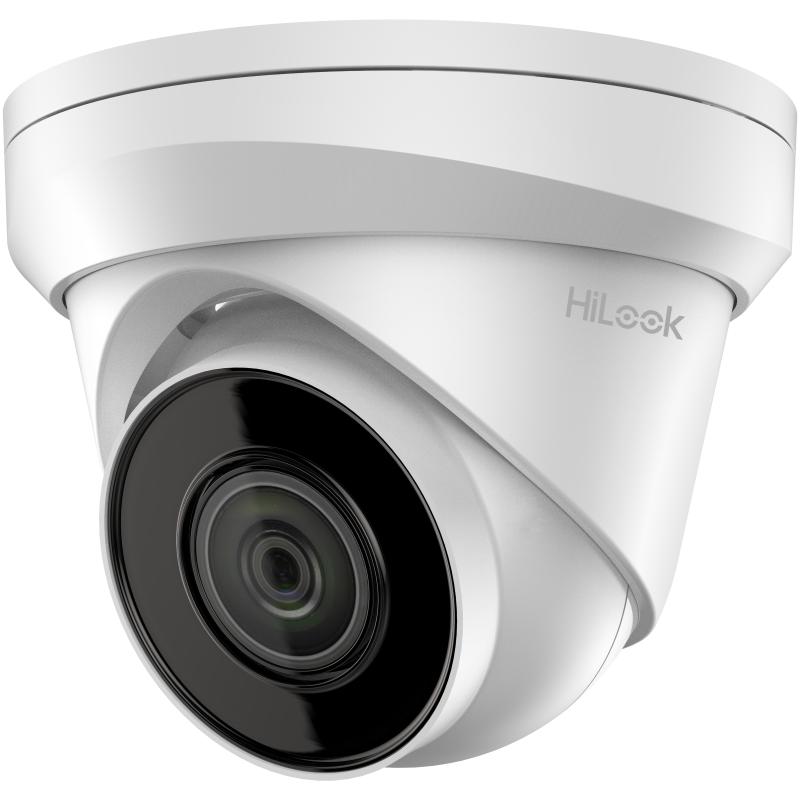

HIKVISION 1/2.5IN PROGRESSIVE CMOS, ICR, 3840 2160: 12.5FPS(P)/15FPS(N)

Camera Specifications

Image Sensor

• Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Min. Illumination: Color: 0.01 Lux @F2.0 (AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan 0–360°, Tilt 0–75°, Rotate 0–360°

Lens

• Lens Type: Fixed focal (2.8 mm or 4 mm)
• 2.8 mm FOV: 108° (H), 60° (V), 127° (D)
• 4 mm FOV: 86° (H), 46° (V), 102° (D)
• Lens Mount: M12
• Iris: Fixed
• Aperture: F2.0

DORI

• 2.8 mm: D: 81 m, O: 32 m, R: 16 m, I: 8 m
• 4 mm: D: 106 m, O: 42 m, R: 21 m, I: 11 m

Illuminator

• Type: IR
• Range: Up to 30 m
• Smart IR: Yes
• Wavelength: 850 nm

Video

• Main Stream (50 Hz): 12.5 fps (3840×2160), 20 fps (2592×1944), 25 fps (2688×1520, 1920×1080, 1280×720)
• Main Stream (60 Hz): 15 fps (3840×2160), 20 fps (2592×1944), 30 fps (2688×1520, 1920×1080, 1280×720)
• Sub-Stream (50 Hz): 25 fps (1280×720, 640×480, 640×360)
• Sub-Stream (60 Hz): 30 fps (1280×720, 640×480, 640×360)
• Compression: H.265+/H.265/H.264+/H.264, MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• H.264 Profiles: Baseline / Main / High
• H.265 Profile: Main
• BRC: CBR / VBR
• ROI: 1 fixed region (main stream)

Network

• Security: Password protection, HTTPS, 802.1X, watermark, IP filter, audit log, TLS 1.2, MAC authentication
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S), ISAPI, SDK
• Protocols: TCP/IP, DHCP, DNS, DDNS, HTTP(S), RTP/RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, FTP, SMTP, 802.1x, Bonjour
• Users: Up to 32 (Administrator / Operator / User)
• Clients: iVMS-4200, HiLookVision
• Browsers: IE 10/11 (plug-in), Chrome 57+, Firefox 52+


• WDR: 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Enhancements: BLC, HLC, 3D DNR
• Adjustments: Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance
• Privacy Mask: 4 regions

Interface

• Ethernet: 1× RJ45 (10/100 Mbps)

Event

• Basic Events: Motion detection, tampering, exception
• Linkage: Notify center, trigger snapshot

General

• Power: 12V DC (±25%), 0.4 A, max 5W PoE 802.3af Class 3 (36–57V), max 6.5W
• Material: Metal & Plastic
• Dimensions: Ø110 mm × 95.2 mm (Ø4.3" × 3.8")
• Package Size: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
• Weight: 320 g (0.7 lb)
• Weight w/ Package: 530 g (1.2 lb)
• Storage Conditions: -30°C to 60°C, ≤95% RH
• Operating Conditions: -30°C to 60°C, ≤95% RH
• Languages: English, Ukrainian
• Functions: Anti-flicker, heartbeat, password protection, email password reset

Certifications

• EMC: FCC SDoC, CE-EMC, RCM
• Safety: CB, CE-LVD
• Environment: CE-RoHS, WEEE, REACH
• Protection: IP67
