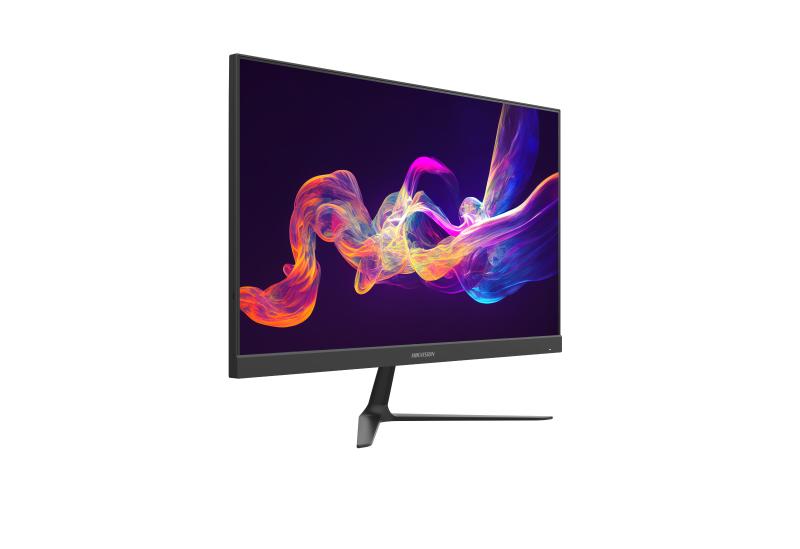

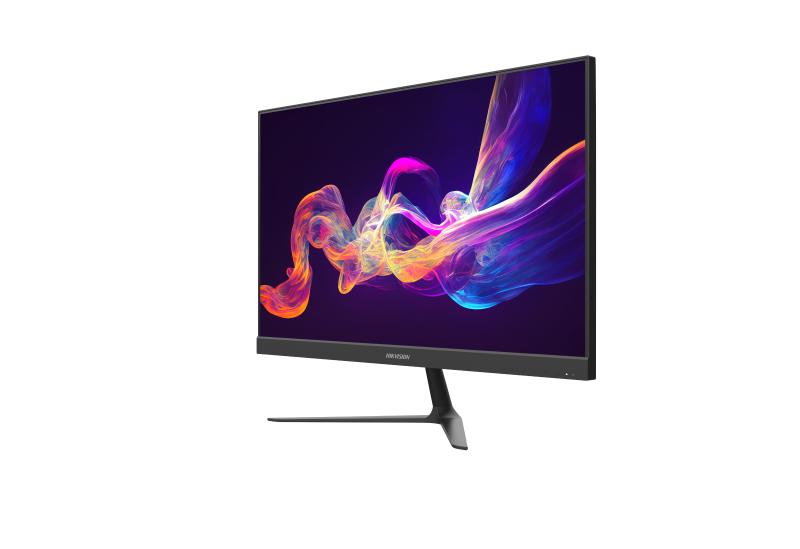

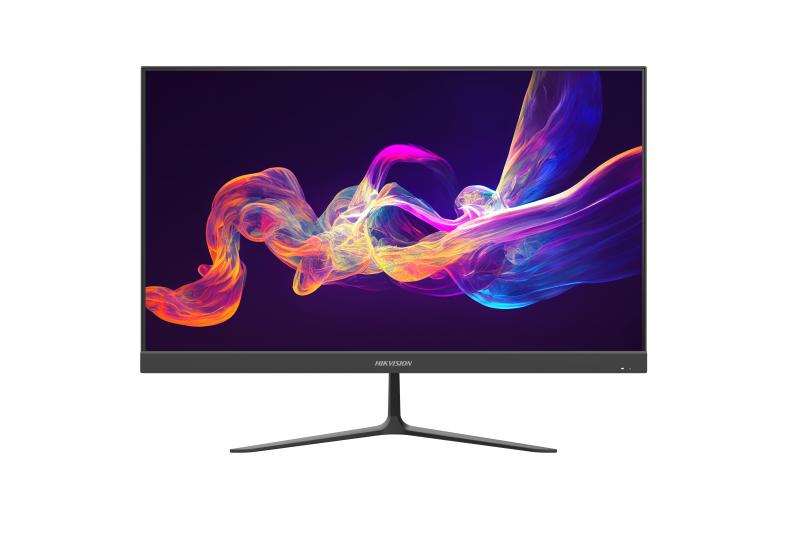

HIKVISION 24INCH MONITOR

Monitor Specifications

Display

• Screen Size: 23.8"
• Active Display Area: 527.04 (H) mm × 296.46 (V) mm
• Resolution: 1920 × 1080 (Full HD)
• Backlight: E-LED
• Pixel Pitch: 0.2745 (H) mm × 0.2745 (V) mm
• Brightness: 250 cd/m²
• Viewing Angle: 178° (H) / 178° (V)
• Color Depth: 8-bit, 16.7M colors
• Contrast Ratio: 4000:1
• Response Time: 7 ms
• Refresh Rate: Typical 60 Hz, Max 100 Hz
• Haze: 25%
• Reliability: 24/7 operation
• Color Gamut: 72% NTSC

Interface

• Video & Audio Input: HDMI 1.4 × 1, VGA × 1, Audio IN × 1
• Video & Audio Output: Speakers × 2 (4Ω, 2W each)
• Data Interface: None
• Control Interface: None

Power

• Power Supply: DC 12V, 2.0A
• Power Consumption: ≤ 24 W
• Standby Consumption: ≤ 0.5 W

Working Environment

• Working Temperature: 0°C to 40°C (32°F to 104°F)
• Working Humidity: 20% to 90% RH (non-condensing)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Humidity: 10% to 90% RH (non-condensing)

General

• Casing Material: Plastic
• VESA Mount: 75 mm × 75 mm (4 × M4 × 6 mm)
• Bezel Width: 2.0 mm (top/left/right), 23.55 mm (bottom)

Dimensions

• With Base (W × H × D): 539.7 × 399.9 × 164.72 mm (21.25 × 15.74 × 6.49 inches)
• Without Base (W × H × D): 539.7 × 327.33 × 43.5 mm (21.25 × 12.89 × 1.71 inches)
• Package Dimensions (W × H × D): 611 × 405 × 118 mm (24.06 × 15.94 × 4.65 inches)

Weight

• Net Weight: 2.85 ± 0.5 kg
• Gross Weight: 3.85 ± 0.5 kg

Packing List

• Monitor × 1
• Base component × 1
• Power adapter (12 V, 2 A) × 1
• HDMI cable (1.5 m) × 1
• User manual × 1
• Multilingual manual × 1

Remarks

• The base is included by default.
• Product appearance and parameters may vary from the actual device. Please consult local sales staff for final details.
