StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD

StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD

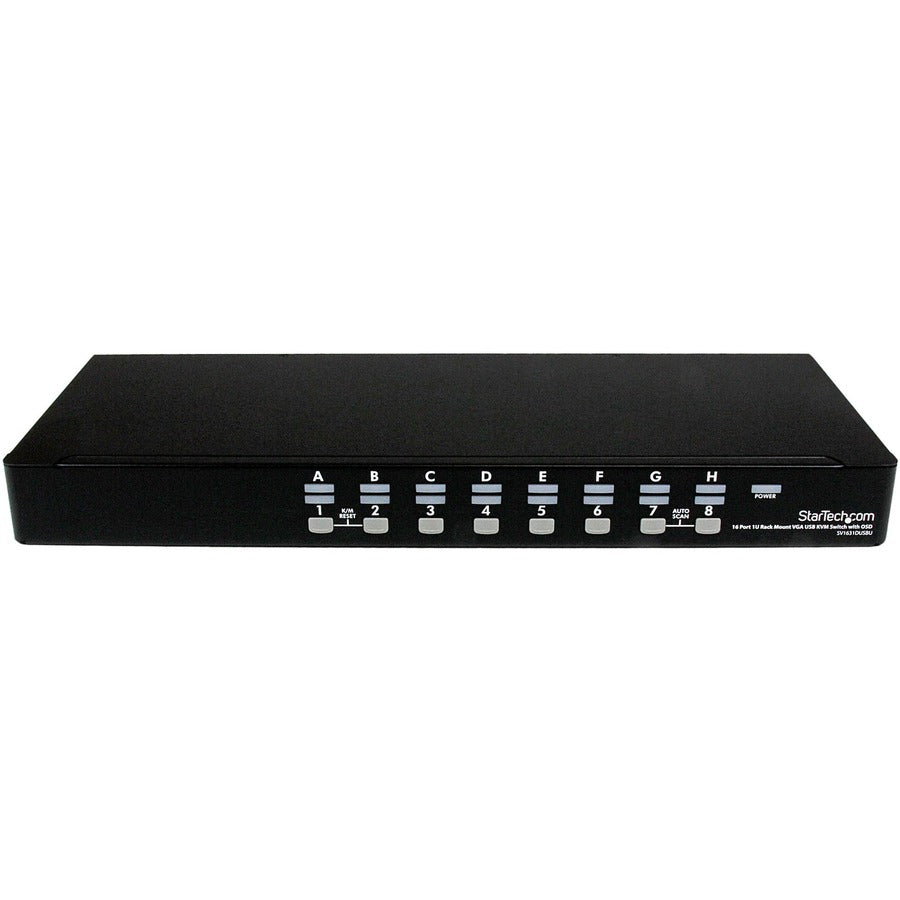

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV1631DUSBU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below:

6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

More from the Manufacturer

More from the Manufacturer

• Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768


• Plug-and-play system configuration


• Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768


• OSD security allows each PC to be password protected


• USB console connections


• Identifies and selects computers by the names assigned using the OSD


• Front panel push-button and Hotkey switching allow easy computer access


• Auto-scan function automatically selects computer sequentially


• Cascade configuration expands system capability


• OS Independent " No drivers or software required
