StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller ...
Description
Description
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps

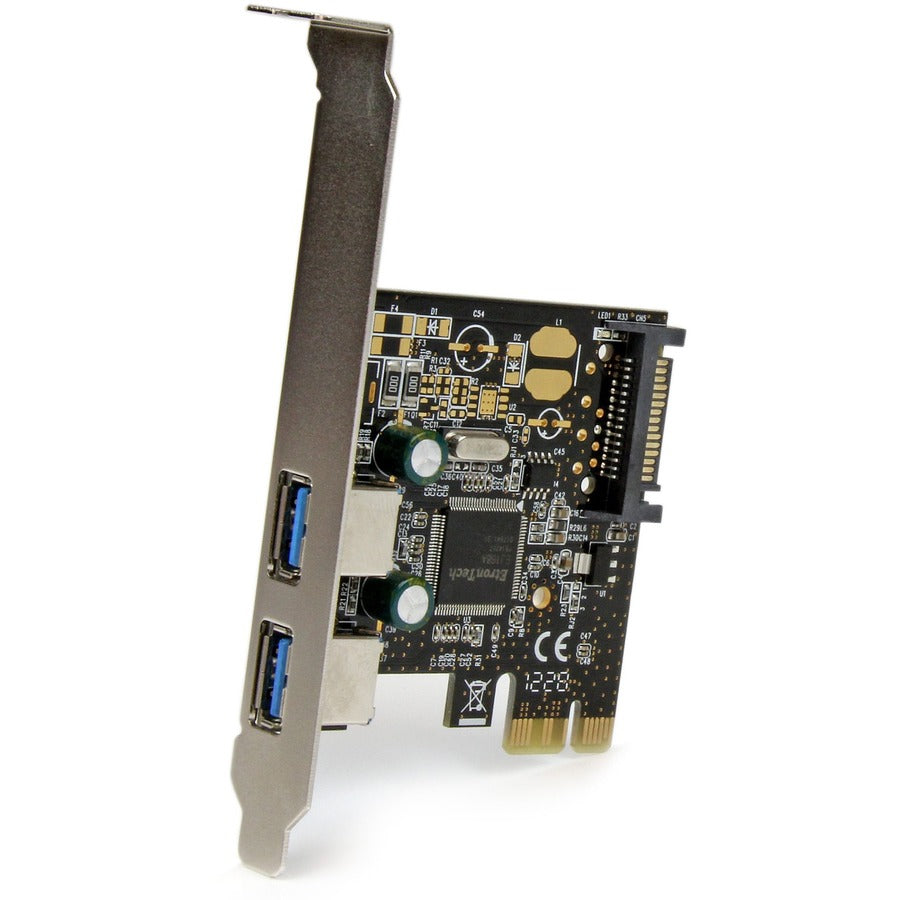

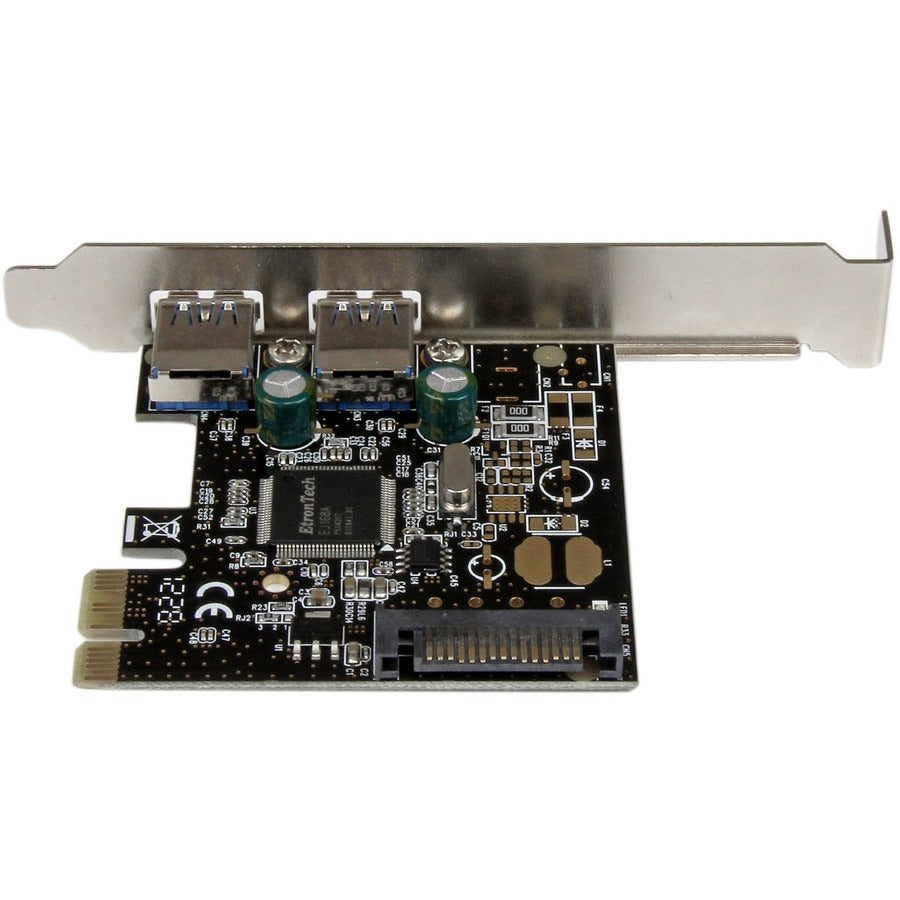

The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Includes a Low Profile/half-height installation bracket
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
- Compliant with PCI Express 2.0 specifications
- Supports data rates up to 5 Gbps
- SATA power connector (required) provides up to 900mA per USB port
- Provides two external USB 3.0 connections
| Product Type: USB Adapter |
| Environmentally Friendly: Yes |
| Total Number Of Usb Ports: 2 |
| Number Of Sata Ports: 1 |
| Uasp Support: No |
| Product Color: Black |
| Number Of Usb 3.2 Ports: 2 |
| Color Family: Black |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: China |
| Brand Name: StarTech.com |
| Operating System Supported: Windows Server 2019 |
| Form Factor: Plug-in Card |
| Length: 3.10" (78.74 mm) |
| Manufacturer: StarTech.com |
| Product Name: 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power |
| Manufacturer Part Number: PEXUSB3S23 |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |
| Platform Supported: PC |
Package Contents:
|
| Limited Warranty: 2 Year |
| Host Interface: PCI Express x1 |
| Weight (Approximate): 1.52 oz (43 g) |
| Feature1: Includes a Low Profile/half-height installation bracket |
| Feature2: Backward compatible with USB 2.0 and USB 1.0/1.1 devices |
| Feature3: Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications |
| Feature4: Compliant with PCI Express 2.0 specifications |
| Feature5: Supports data rates up to 5 Gbps |
| Feature6: SATA power connector (required) provides up to 900mA per USB port |
| Feature7: Provides two external USB 3.0 connections |
