StarTech.com 2S1P PCI Express Serial Parallel Combo Card

StarTech.com 2S1P PCI Express Serial Parallel Combo Card

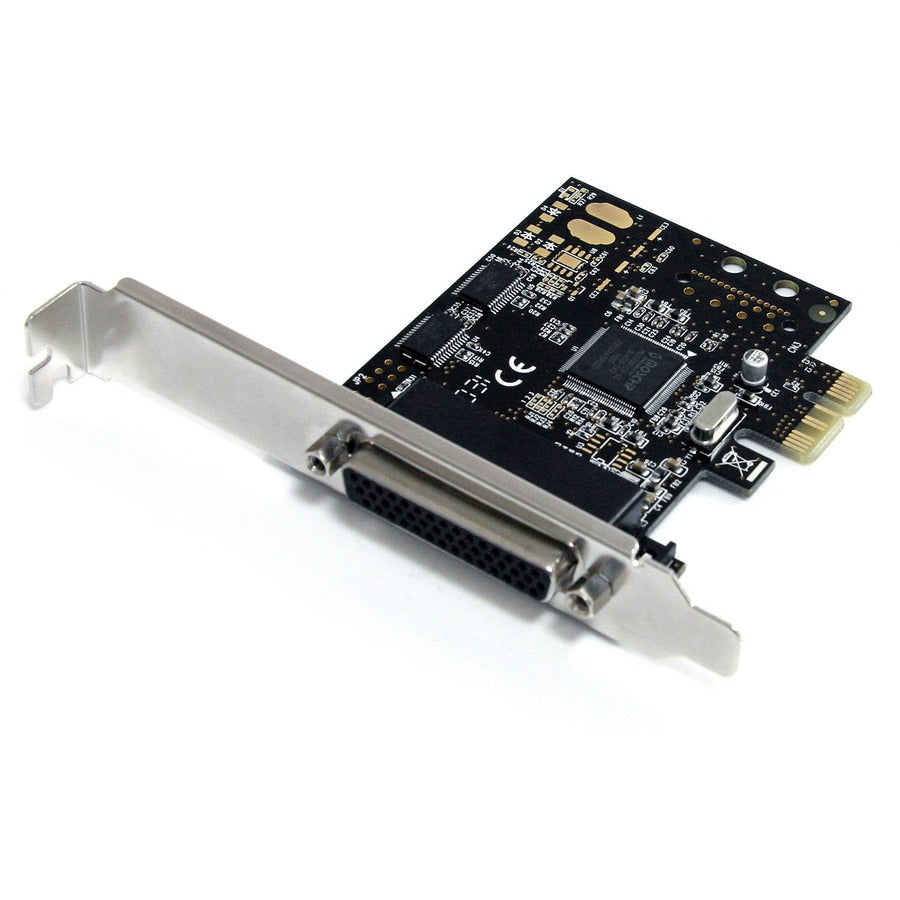

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

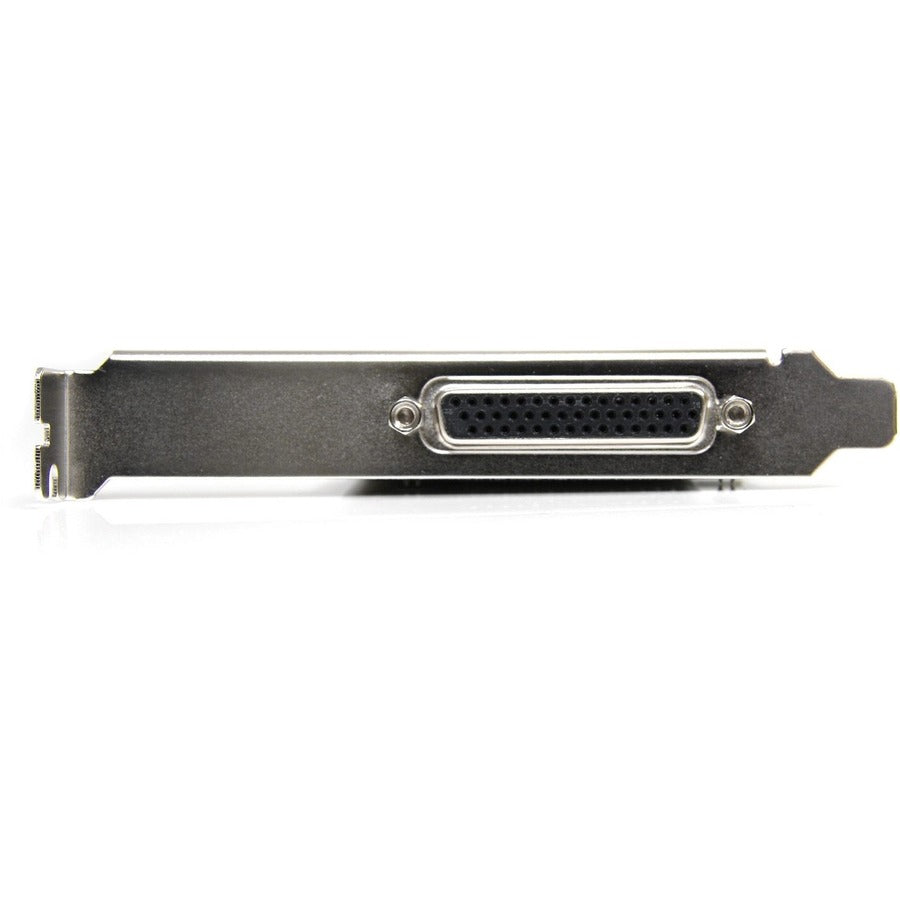

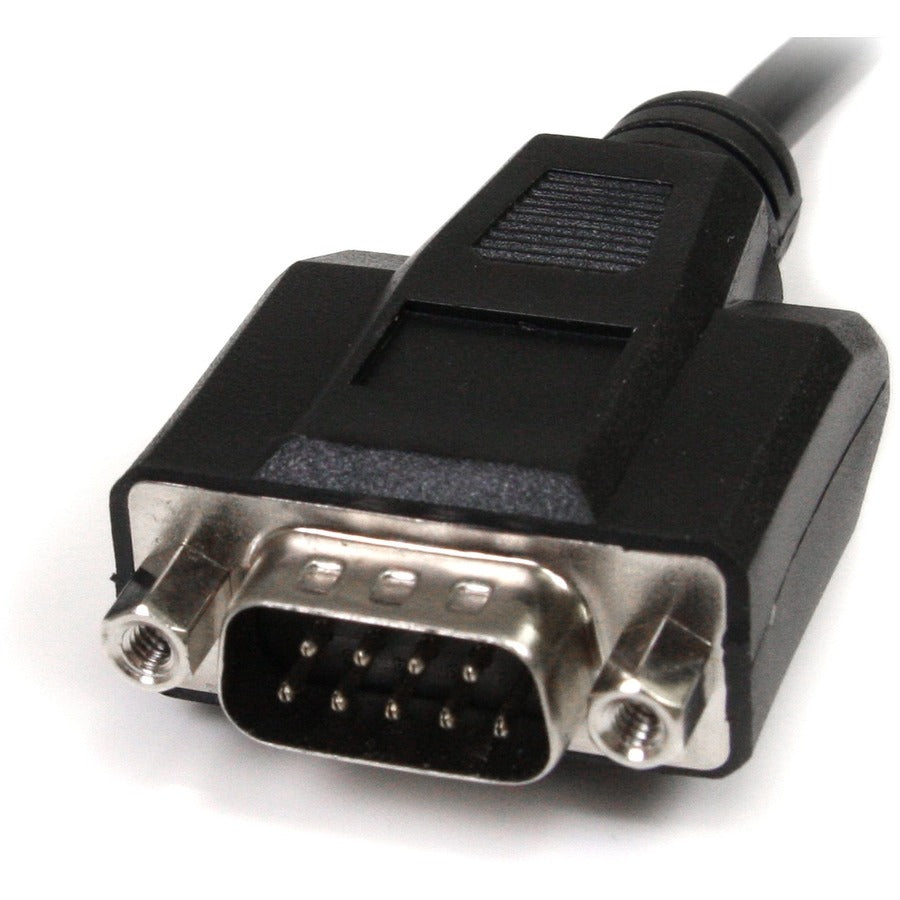

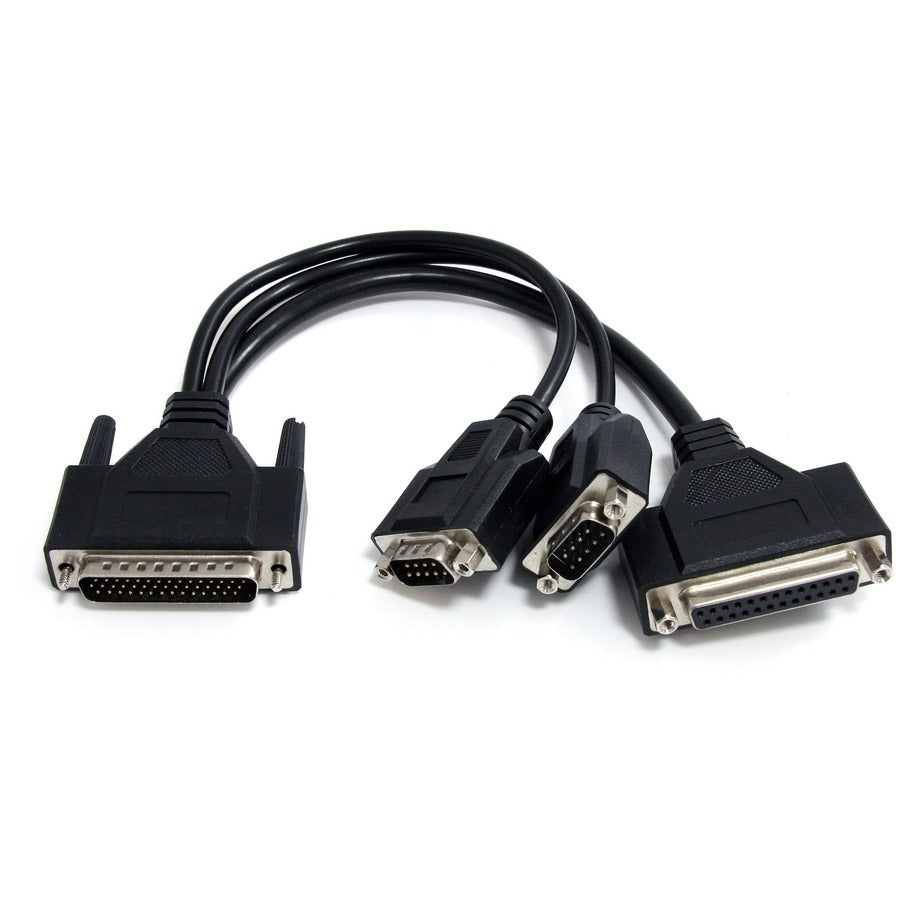

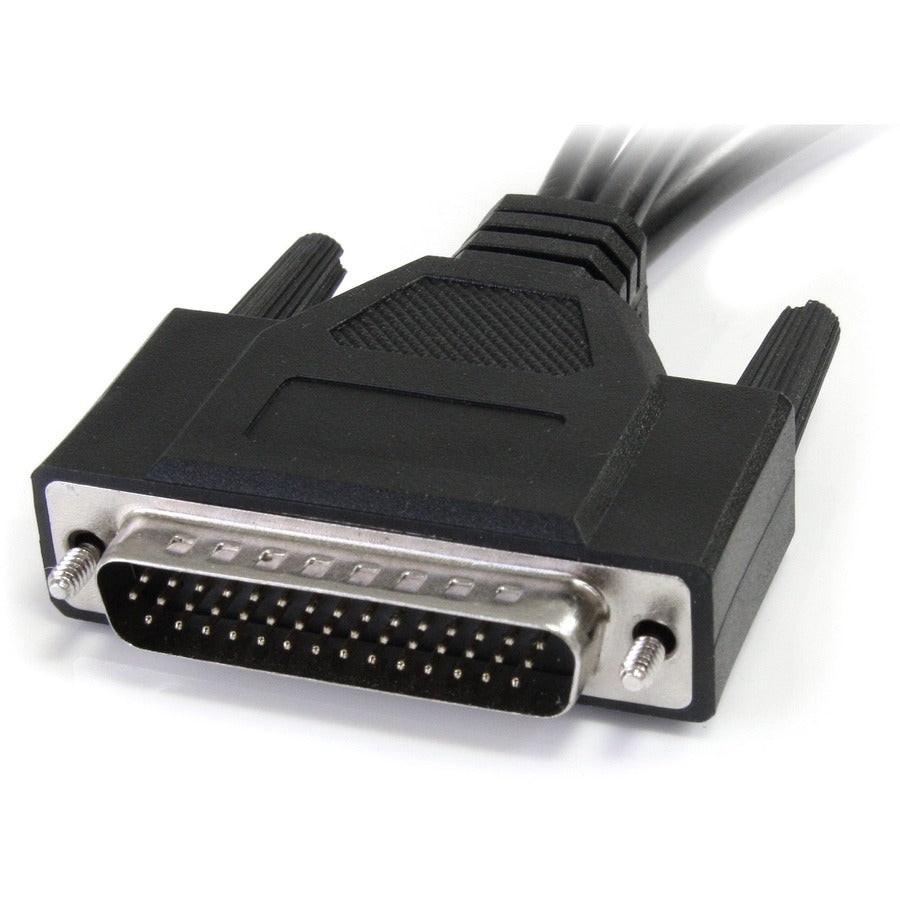

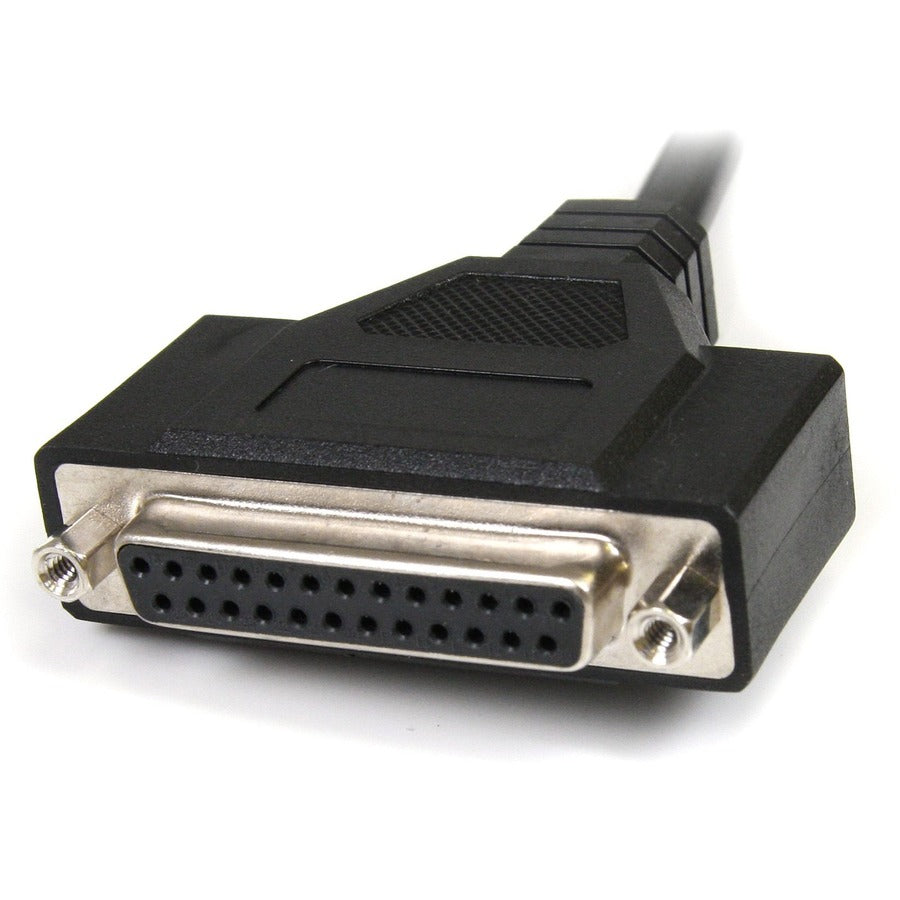

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

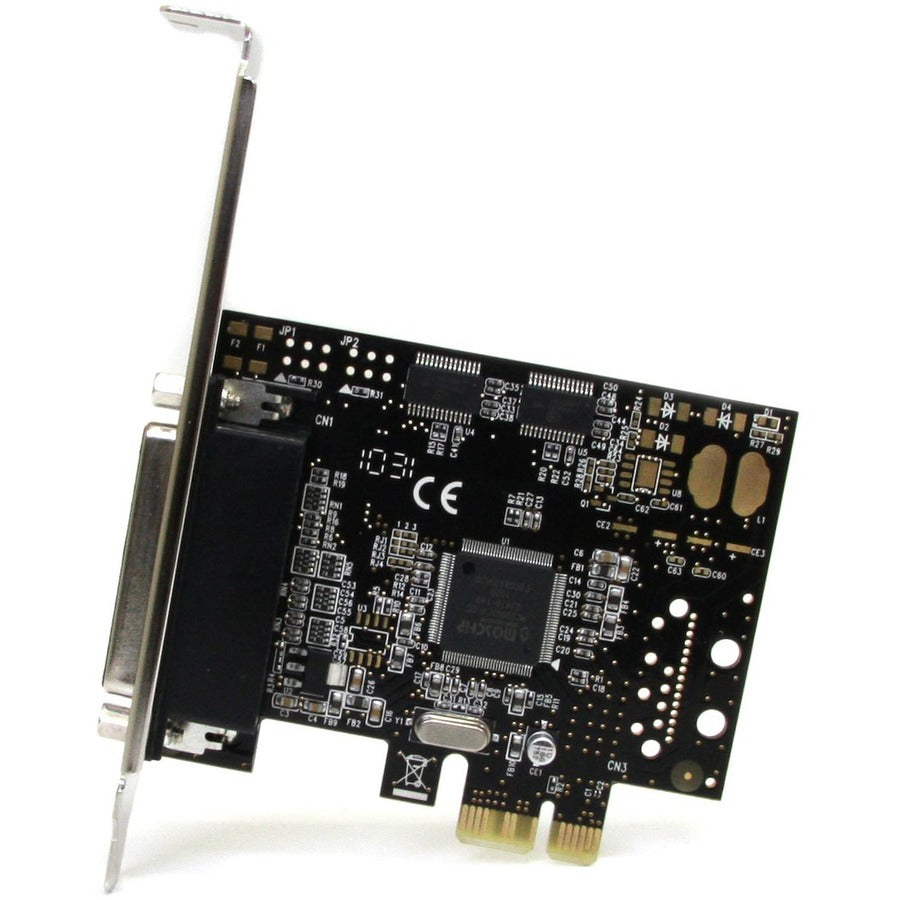

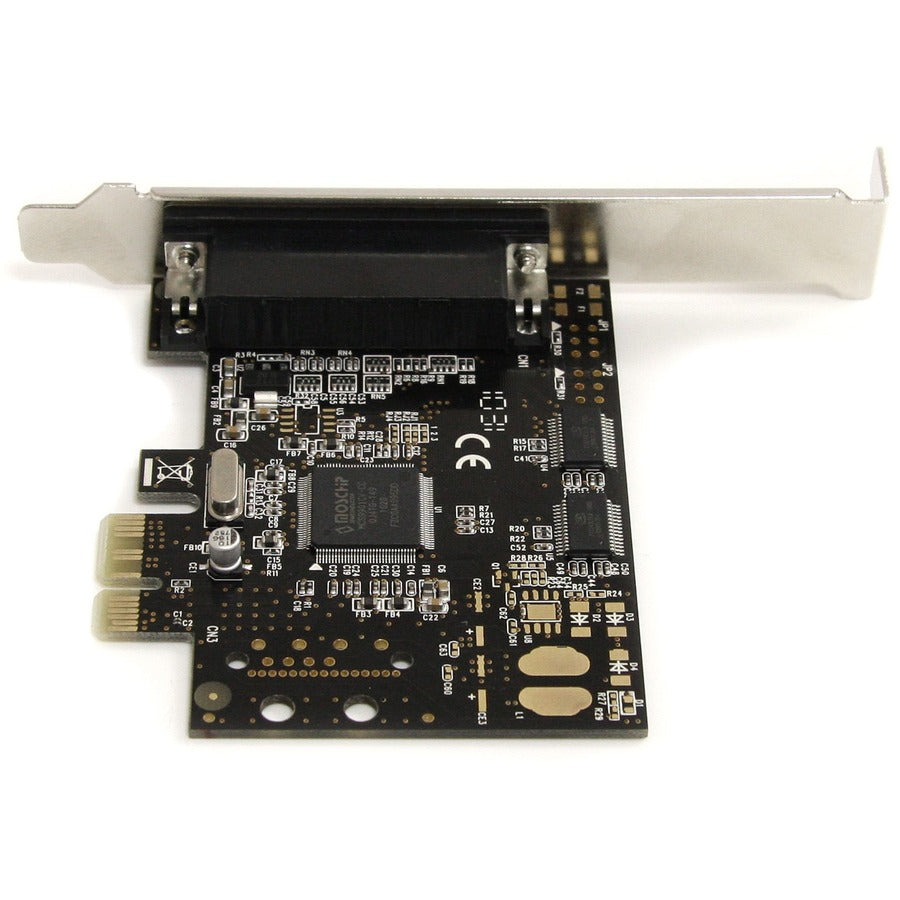

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

More from the Manufacturer

• Single-Lane (x1) PCI-Express host connection


• PCI Express Base Specification 1.0a compliant


• On-chip 256-byte depth FIFO in transmit/receive path of each port


• Compatible with industrial standard 16C450/16C550 UART


• Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)


• Supports serial data transfer rate up to 250 Kbps (per port)


• Supports parallel data transfer rates up to 1.5 Mbps


• Single-chip architecture, no bridge chip


• Low profile/half-height design with optional full profile bracket
