StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
Description
Description
StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

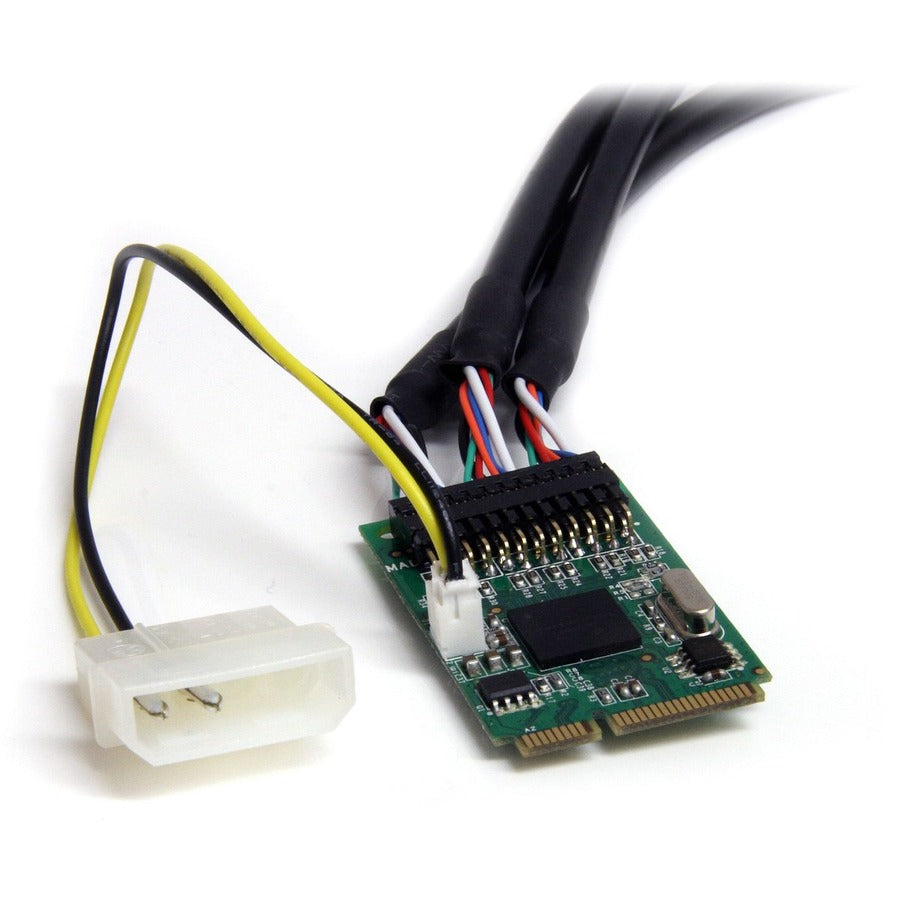

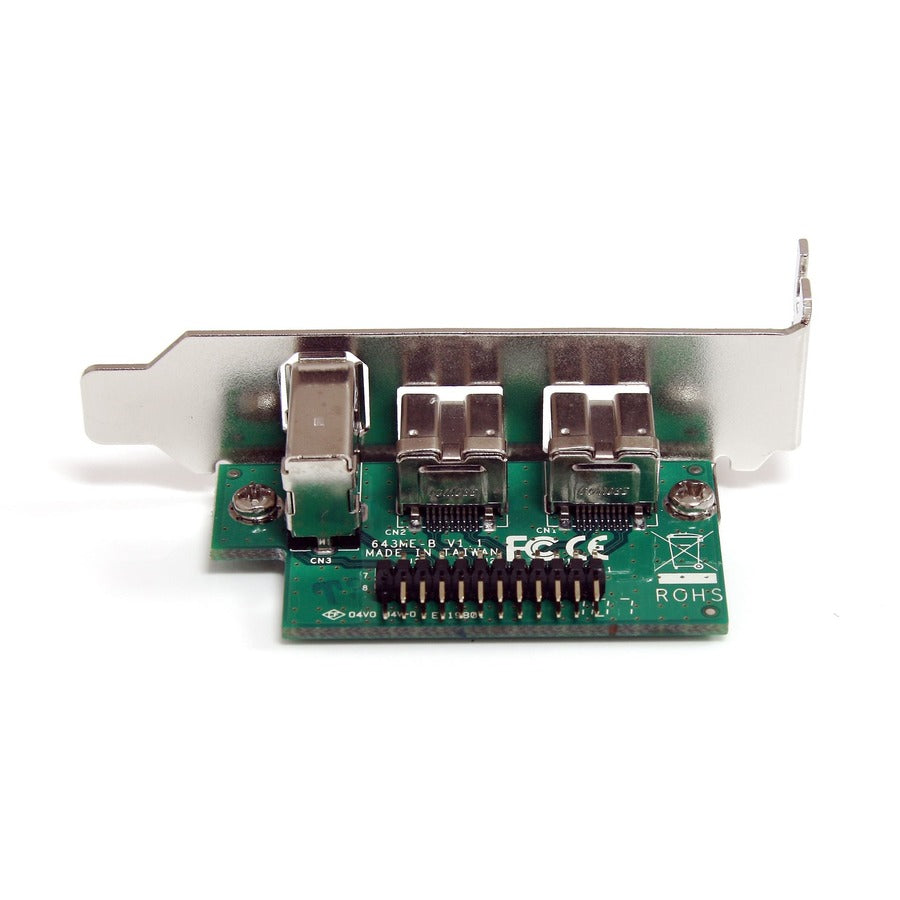

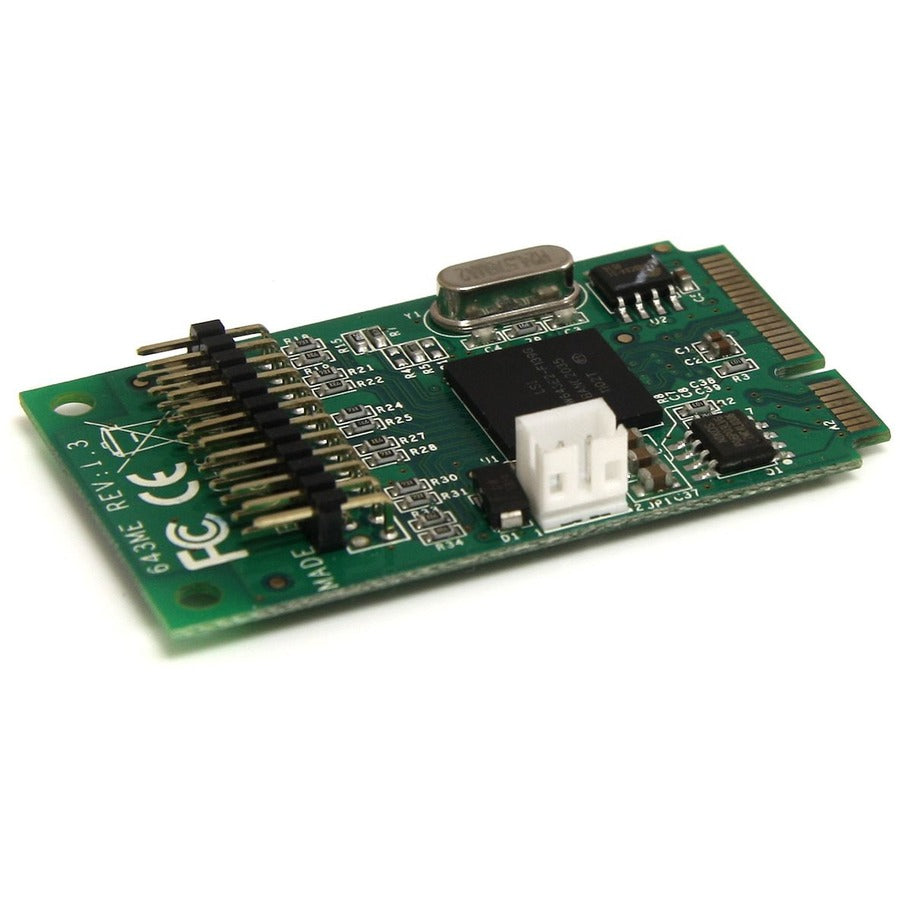

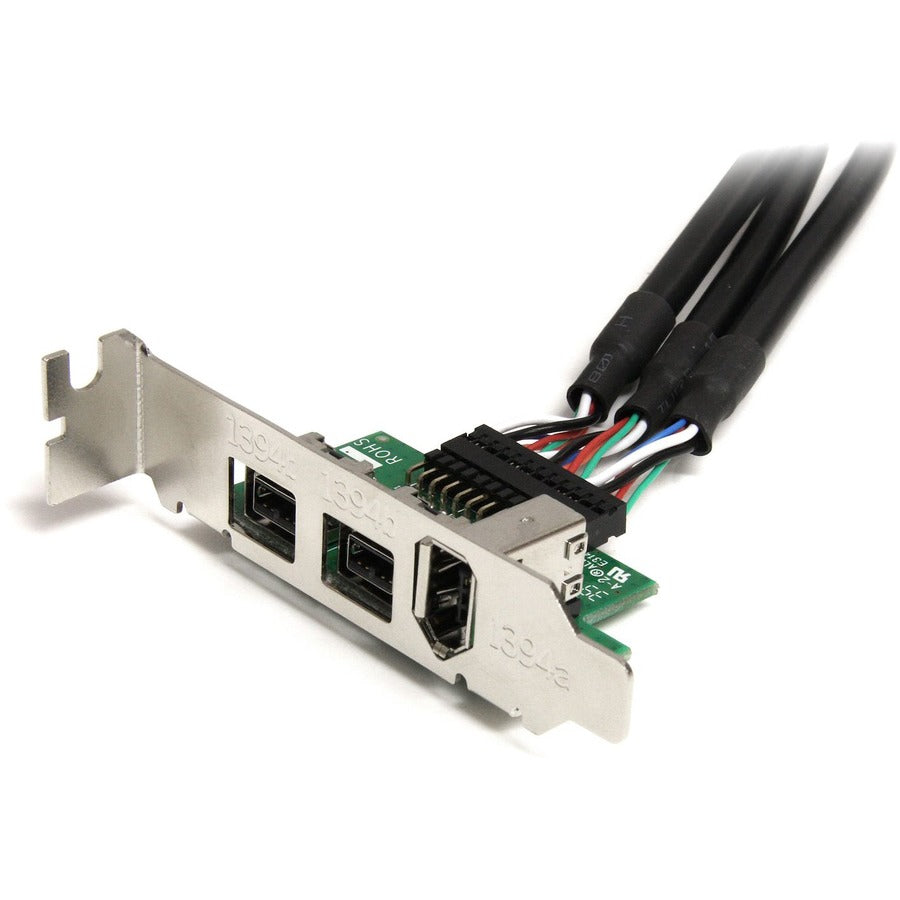

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Plug-and-Play and hot-swap compatible
- Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Optional external power support for high-powered FireWire devices
- Compliant with PCI Express Mini Card specification 1.2
- 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
- 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
| Product Type: FireWire Adapter |
| Environmentally Friendly: Yes |
| Total Number Of Firewire/I.Link Ports: 3 |
| Number Of Firewire/I.Link 400 Ports: 1 |
| Number Of Firewire/I.Link 800 Ports: 2 |
| Taa Compliant: Yes |
| Country Of Origin: Taiwan |
| Brand Name: StarTech.com |
| Operating System Supported: Linux 3.5.x |
| Form Factor: Plug-in Card |
| Length: 2" (50.80 mm) |
| Manufacturer: StarTech.com |
| Product Name: 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter |
| Data Transfer Rate: 800 MB/s |
| Manufacturer Part Number: MPEX1394B3 |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |
| Platform Supported: Linux |
Package Contents:
|
| Limited Warranty: 2 Year |
| Host Interface: Mini PCI Express |
| Weight (Approximate): 3.20 oz (90.72 g) |
| Feature1: Plug-and-Play and hot-swap compatible |
| Feature2: Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards |
| Feature3: Optional external power support for high-powered FireWire devices |
| Feature4: Compliant with PCI Express Mini Card specification 1.2 |
| Feature5: 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps |
| Feature6: 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps |
