StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

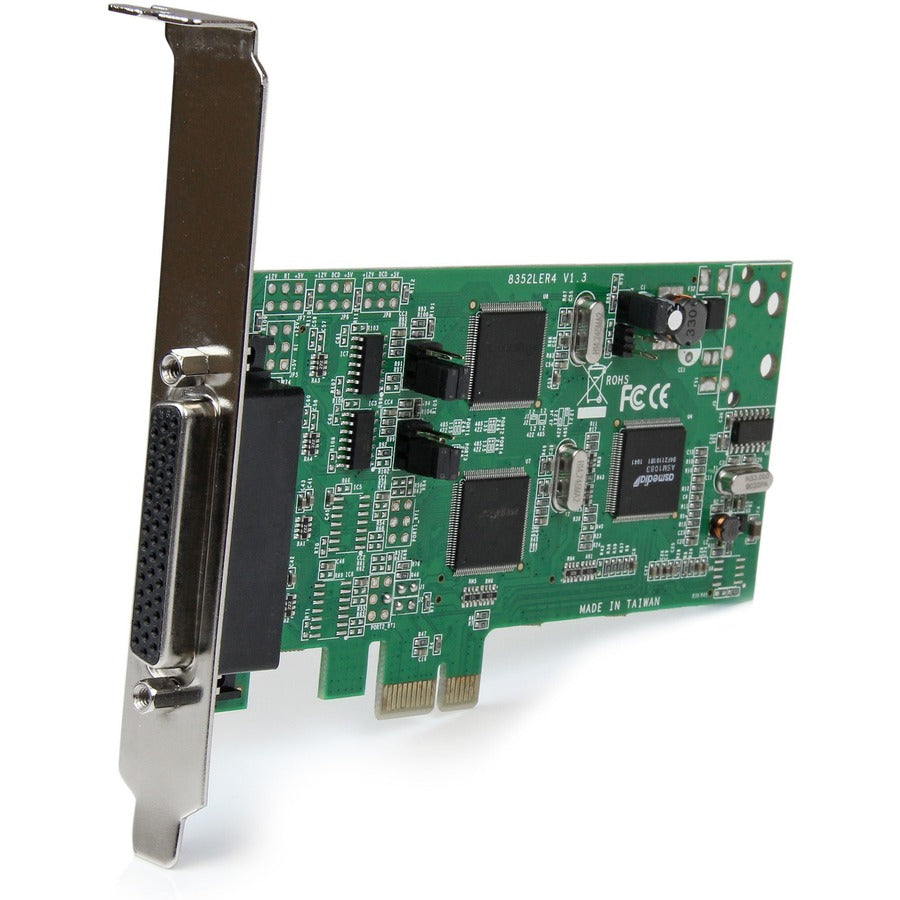

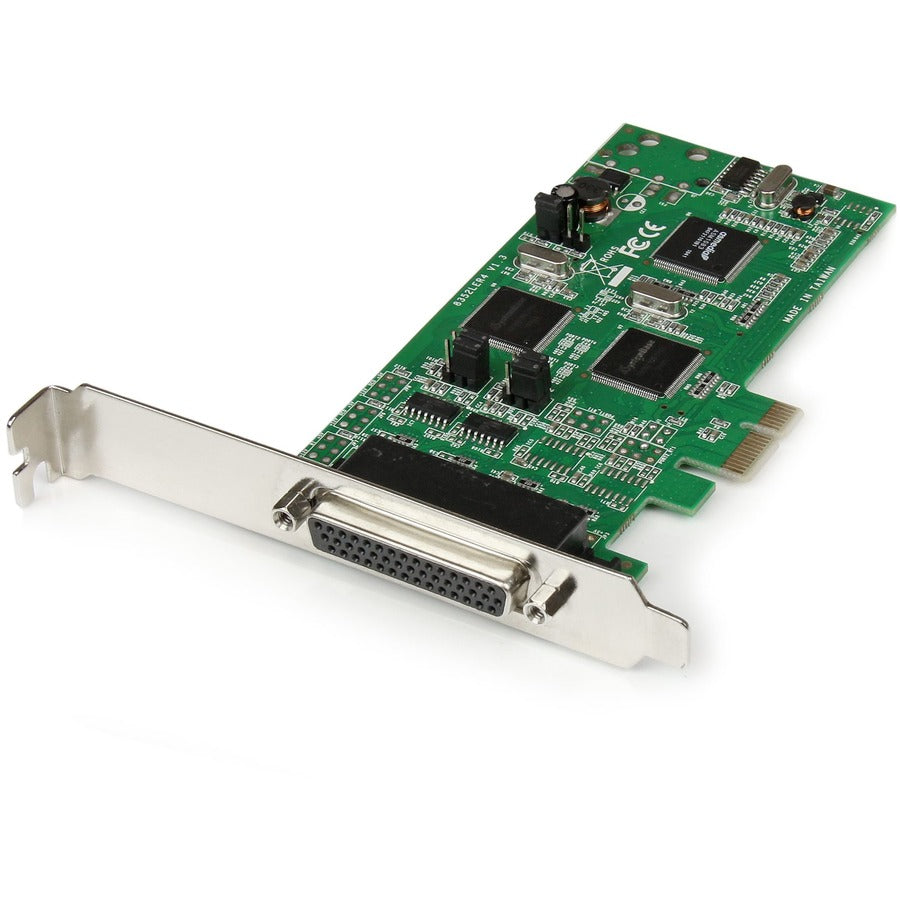

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

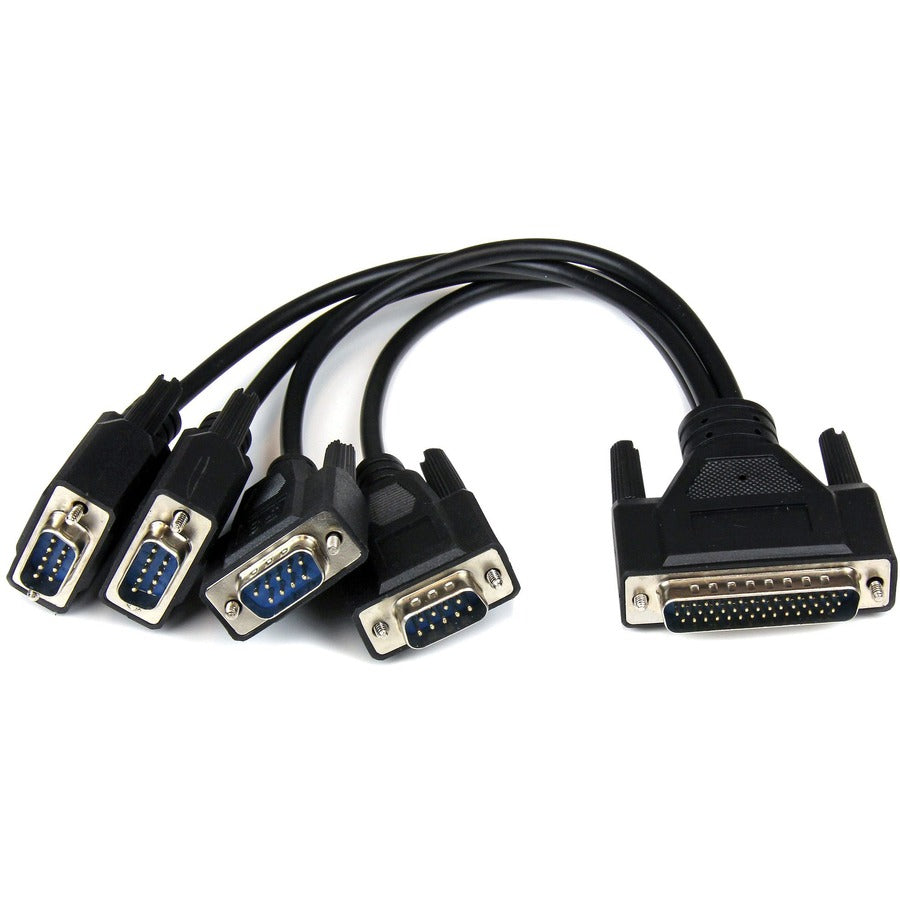

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
- Compliant with PCI-Express Specification 1.0a
- Supports PCI Power Management 1.1
- 256-byte deep FIFO per transmitter and receiver
- Standard and low-profile bracket included
- Supports 2-Wire / 4-Wire RS485 modes
- RS232 data transfer rates up to 460 Kbps
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
| Product Type: Multiport Serial Adapter |
| Environmentally Friendly: Yes |
| Environmental Certification: REACH |
| Maximum Data Transfer Rate: 3.59 Mbit/s |
| Taa Compliant: Yes |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: Taiwan |
| Brand Name: StarTech.com |
| Form Factor: Plug-in Card |
| Manufacturer: StarTech.com |
| Product Name: 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 |
| Manufacturer Part Number: PEX4S232485 |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |
| Ports Expandability: 4 x DB-9 RS-232/422/485 - Serie, vía cable |
Package Contents:
|
| Limited Warranty: Lifetime |
| Host Interface: PCI Express x1 |
| Weight (Approximate): 2.40 oz (68.04 g) |
| Feature1: Compliant with PCI-Express Specification 1.0a |
| Feature2: Supports PCI Power Management 1.1 |
| Feature3: 256-byte deep FIFO per transmitter and receiver |
| Feature4: Standard and low-profile bracket included |
| Feature5: Supports 2-Wire / 4-Wire RS485 modes |
| Feature6: RS232 data transfer rates up to 460 Kbps |
| Feature7: 4 port (2 x RS232, 2 x RS422/485) serial combo card |
