StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors.
The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®; PNY, ATI and HP.
Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability - making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.
- SPECS: 6 feet (2 m)
- Black
- DP v1.2
- Mini DisplayPort Male to Female
- 30 AWG
- PVC cable jacket, ABS connector shell
- Shield: Aluminium foil with Braid
- Protocols: HBR 2, MST, GTC
- Backwards compatible with DP1.1
- Lifetime Warranty
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with TB2/Mini-DP port)/professional workstations with FirePro™ W9100/8100, NVS 810/510 graphic card; UHD/4K monitor/projector/display; Apple MacBook Pro/Air, Microsoft Surface Pro 1-6
- QUALITY CONSTRUCTION: 32AWG wire and EMI shielding with Aluminium foil and Braid provide superior signal integrity and reliability for higher quality video and audio; Use this DMS-59 to DisplayPort cable with DMS/LFH 59 graphics cards
- RELIABLE DESIGN: Durable and flexible molded PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Cost-effective replacement for damaged or misplaced DMS-59 to dual DisplayPort splitter y cables
- DMS-59 TO DUAL DISPLAYPORT ADAPTER CABLE: This 7.8 in (20 cm) DMS-59 P to 2x DP v1.2 extension cable (male to 2x female connectors) supports 4K x 2K video (3840 x 2400p 60Hz), 1920 x 1200p, Full HD 1080p, 21.6 Gbps bandwidth, HBR2
| Product Type: Video Cable |
| Environmentally Friendly: Yes |
| Jacket Material: Polyvinyl Chloride (PVC) |
| Product Color: Black |
| Color Family: Black |
| Country Of Origin: China |
| Brand Name: StarTech.com |
Compatibility:
|
| Manufacturer: StarTech.com |
| Product Name: 8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable |
| Manufacturer Part Number: DMSDPDP1 |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 |
| Limited Warranty: Lifetime |
| Weight (Approximate): 79.4 g |
| Cable Characteristic: Splitter Cable |
| Cable Type: DMS-59/DisplayPort |

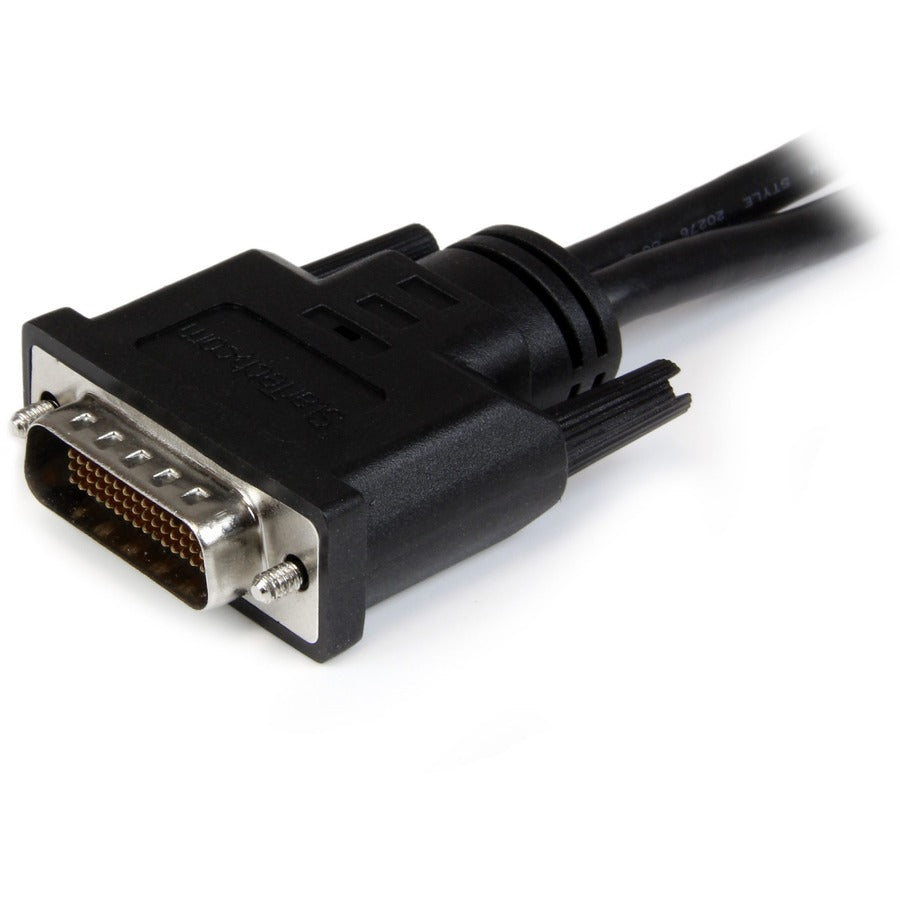

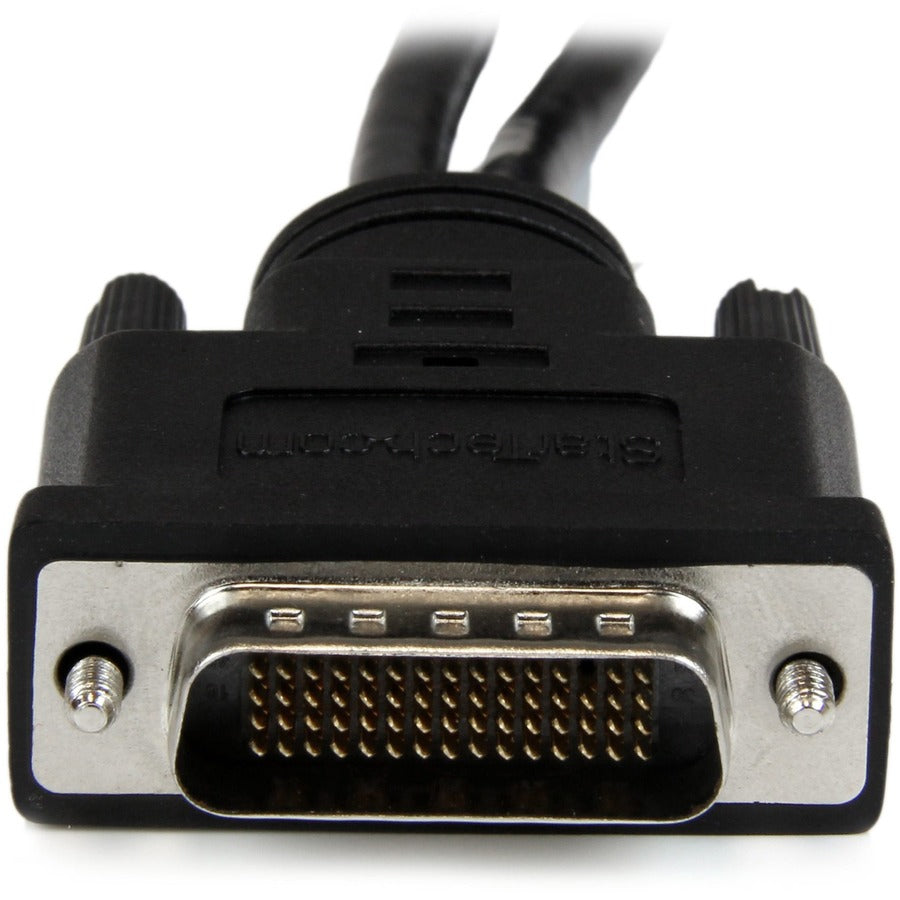

| Connector Type On First End: DMS-59 Video - Male |

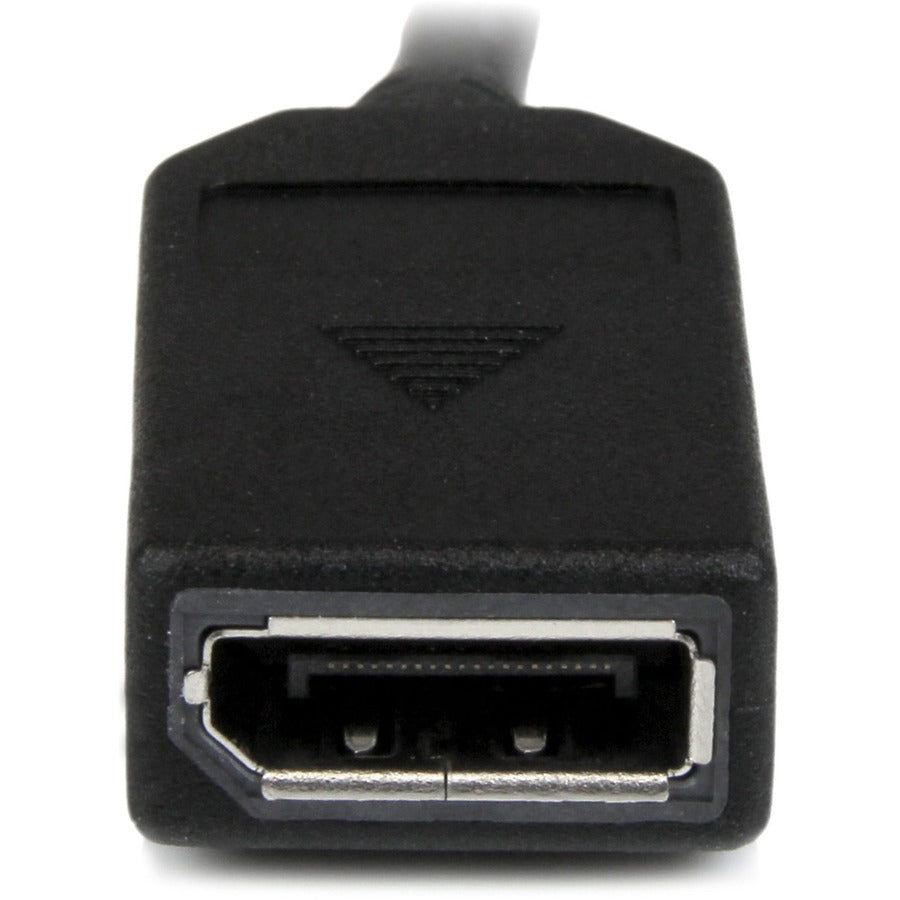

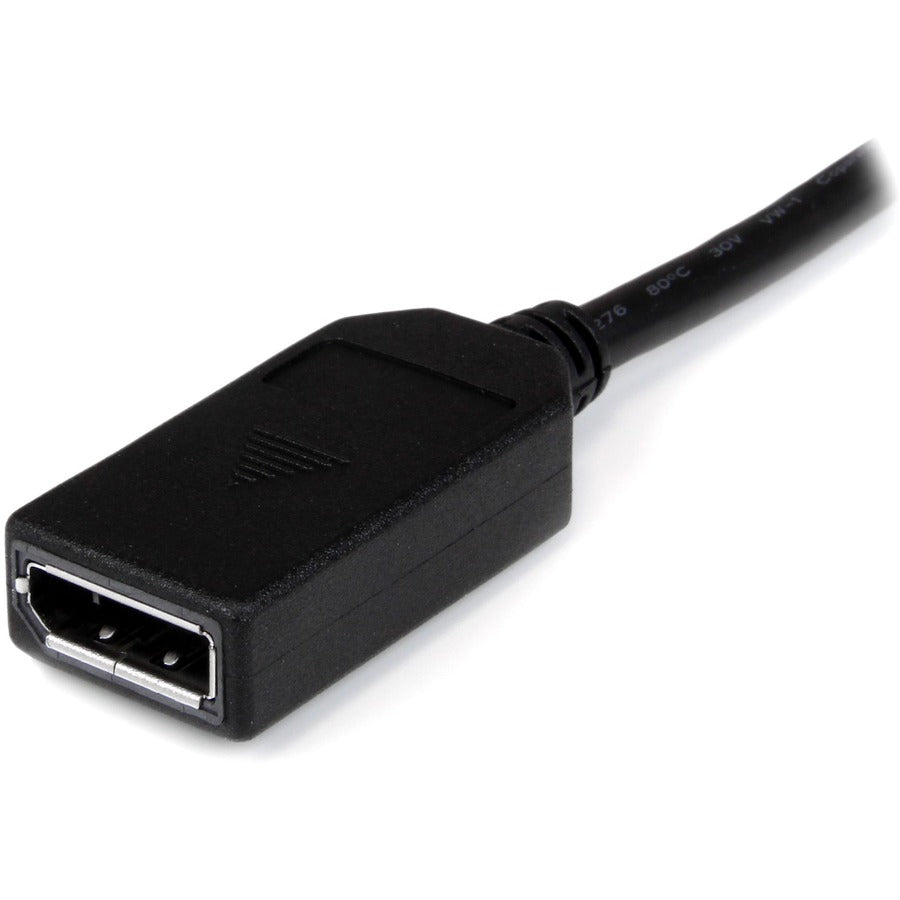

| Connector Type On Second End: DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating: Nickel |
| American Wire Gauge: 32 AWG |
| Supported Resolution: 3840 x 2400 |
| Connector On First End Details: 1 x 59-pin DMS-59 Video - Male |
| Connector On Second End Details: 2 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender On First End: Male |
| Connector Gender On Second End: Female |
| Features: Multi-Stream Transport (MST) Support |
| Data Transfer Rate: 21.6 Gbit/s |
| Device Supported: MacBook Air |
| Shielding: Yes |
| Cable Length: 8" |
