StarTech.com  |  PART NUMBER: PEX8S1050LP

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Controller 16C1050 UART, Low Profile, 15kV ESD, Windows Only, TAA

$292.99

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Controller 16C1050 UART, Low Profile, 15kV ESD, Windows Only, TAA

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

Versatile Use

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

More from the Manufacturer


  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer

  • An upgrade to our popular card PEX8S950LP

  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface

  • WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers

  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

  • TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART Compat.; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; None/Even/Odd Parit
Product Type: Multiport Serial Adapter
Environmentally Friendly: Yes
Maximum Data Transfer Rate: 921.40 kbit/s
Number Of Serial Ports: 8
Taa Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: Plug-in Card
Manufacturer: StarTech.com
Product Name: 8-Port PCI Express Serial Card with 16C1050 UART
Manufacturer Part Number: PEX8S1050LP
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1 Each
Ports Expandability: 8 x DB-9 - Serie, vía cable

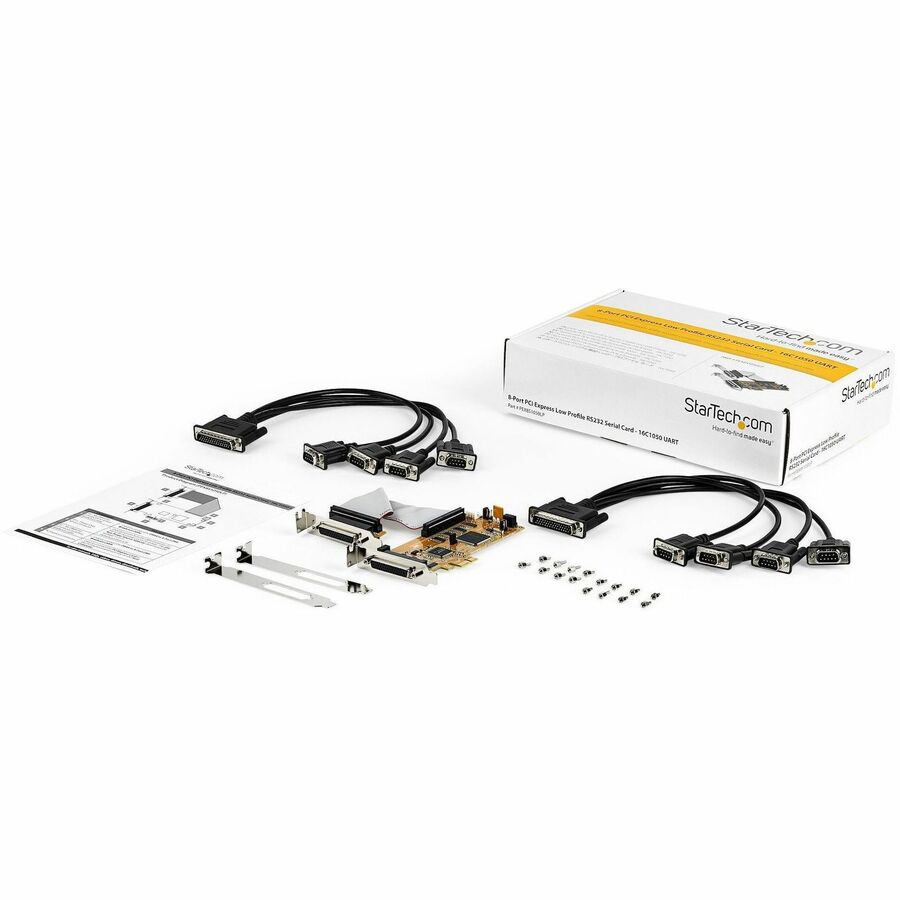

Package Contents:

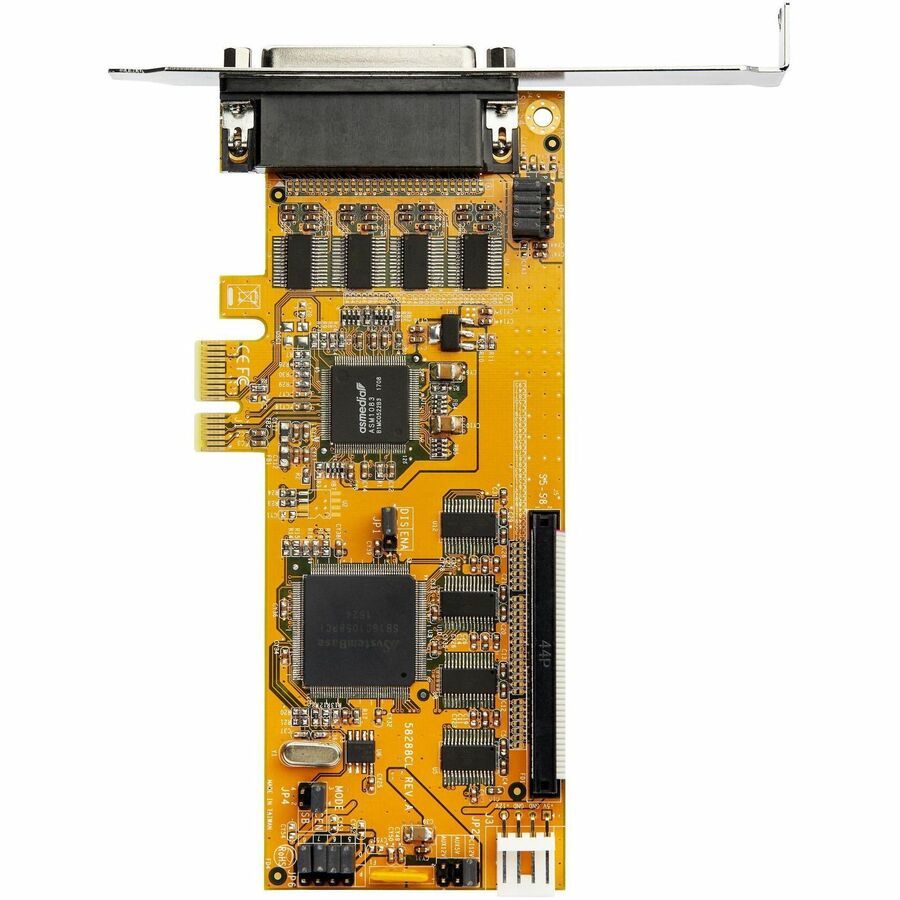

  • 8-Port PCI Express Serial Card with 16C1050 UART
  • 2 x DB44 to 4-Port SB9 Breakout Cables

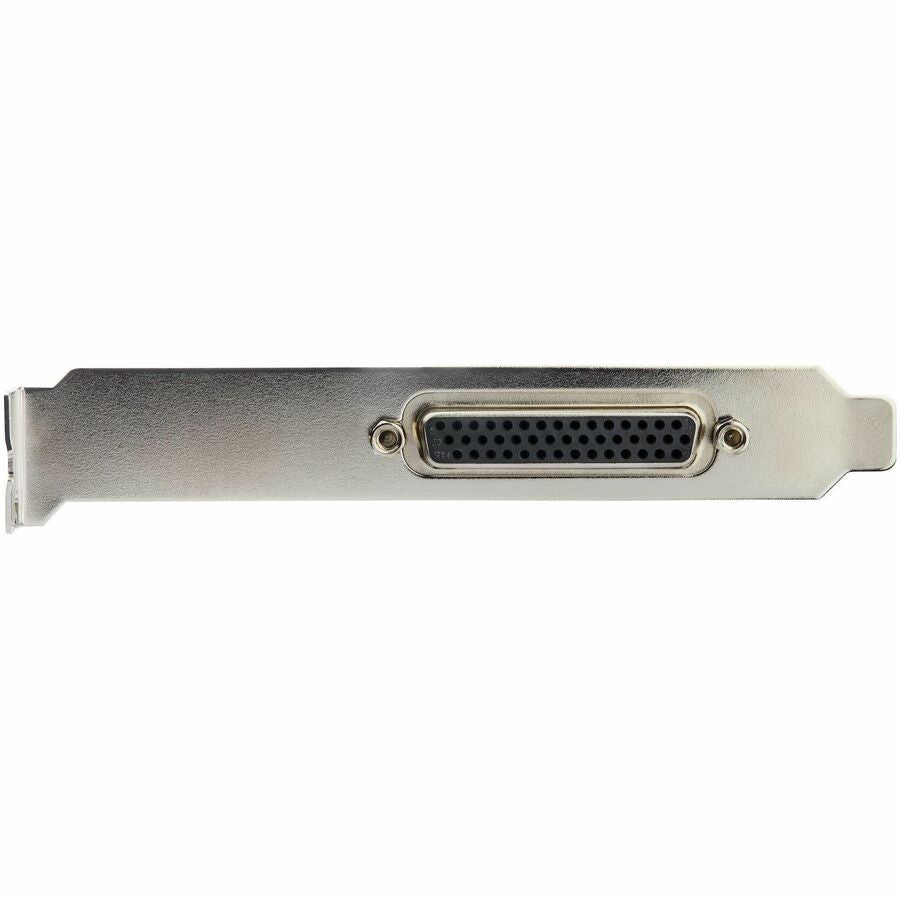

  • 2 x Full Profile Brackets
  • 1 x Quick-Start Guide
Limited Warranty: Lifetime
Host Interface: PCI Express x1
Weight (Approximate): 4.09 oz (116 g)
Feature1: 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
Feature2: An upgrade to our popular card PEX8S950LP
Feature3: OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
Feature4: WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers
Feature5: VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
Feature6: TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART Compat.; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; None/Even/Odd Parit
