StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio

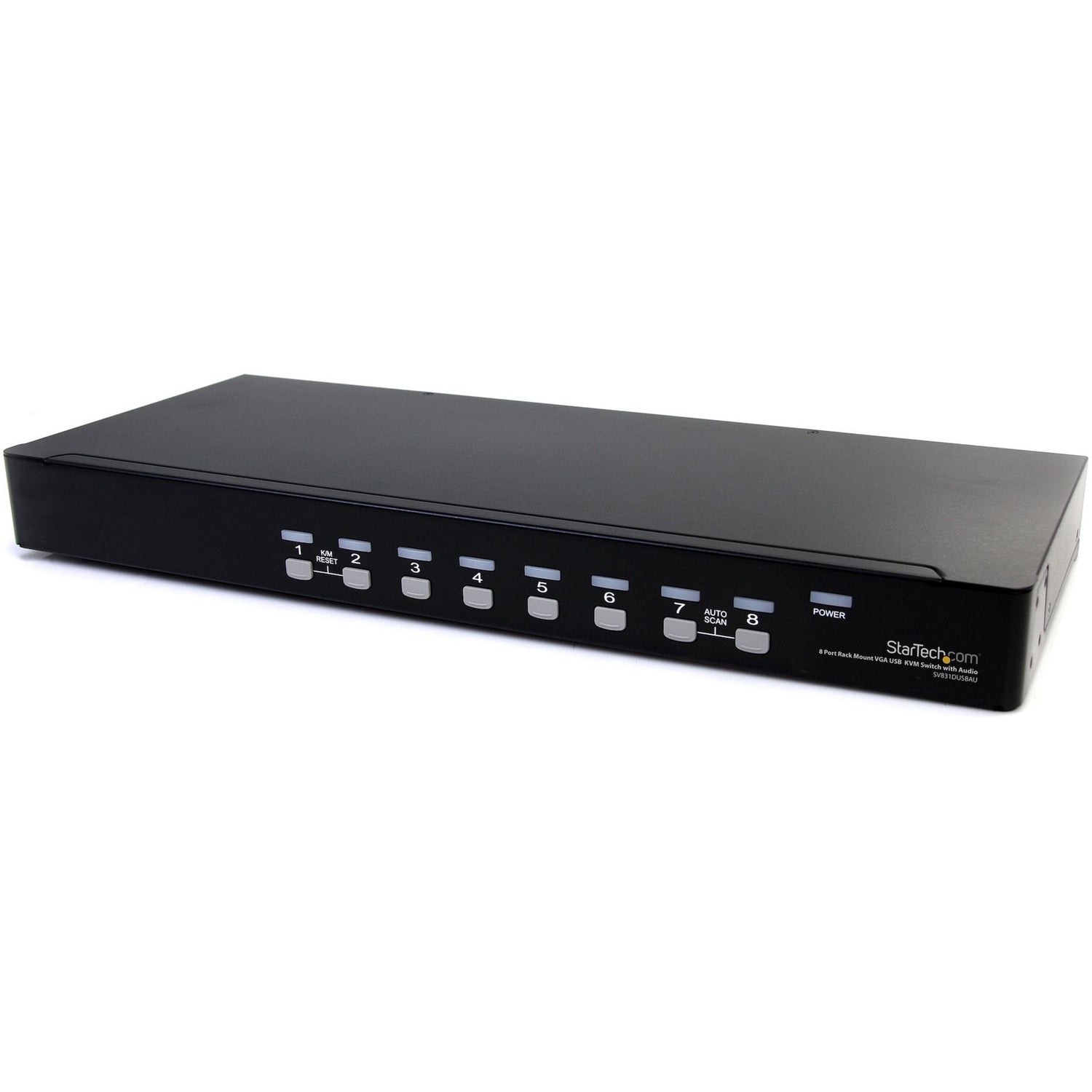

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below:

6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

More from the Manufacturer

• USB Keyboard and Mouse combo supported on one USB connection


• Plug-and-play system configuration


• USB console interface


• Auto-scan function automatically selects computer sequentially


• Cascade configuration expands system capability


• Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768


• Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768


• OSD security allows each PC to be password protected


• Identify and select computers by names assigned via the OSD menu


• Supports Hotkey and front panel push-button switching
