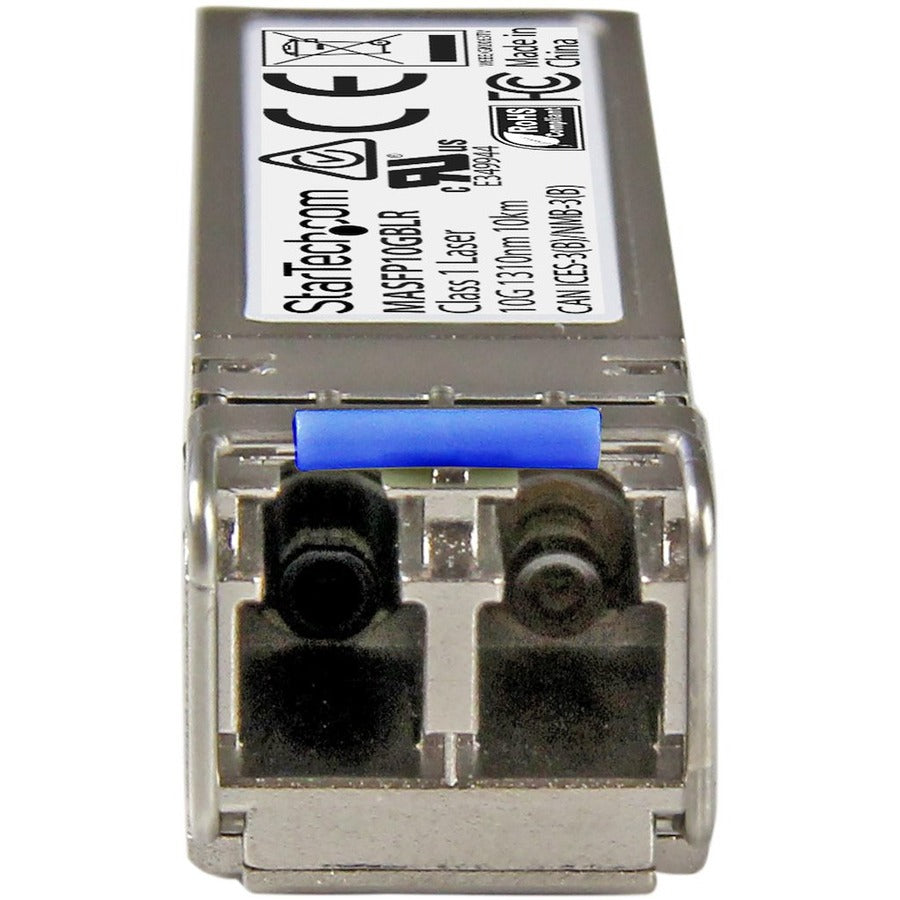

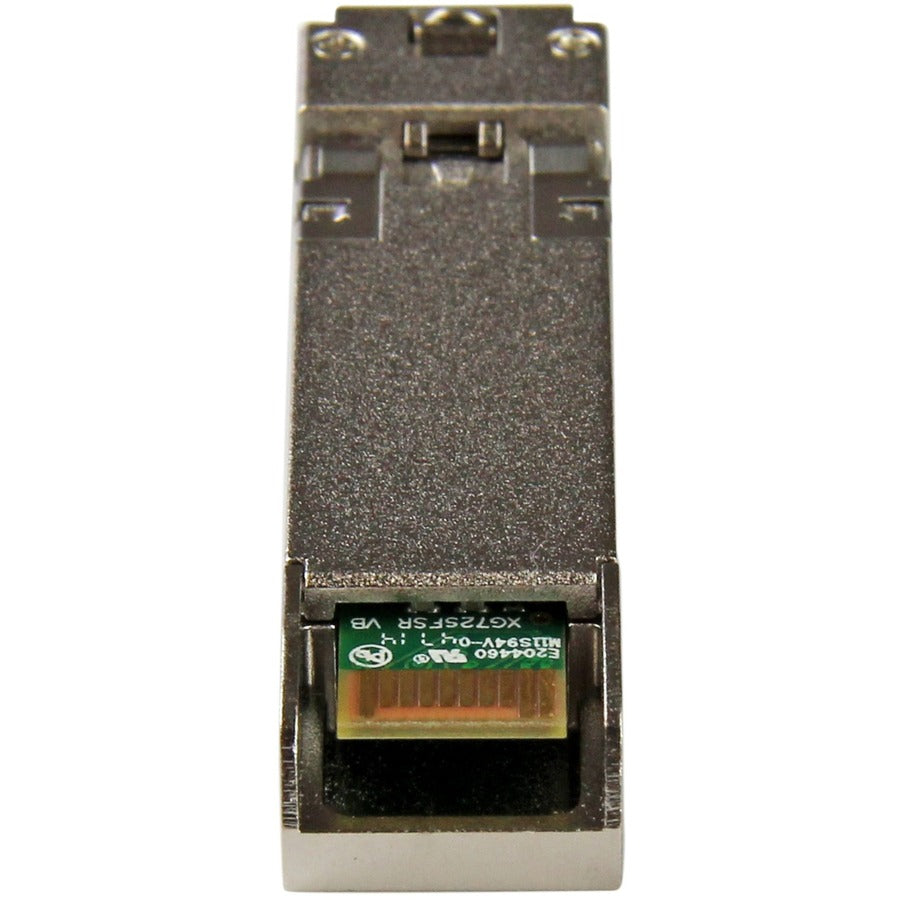

StarTech.com Cisco Meraki MA-SFP-10GB-LR Comp. SFP+ Module - 10GBASE-LR - 10GbE Gigabit Ethernet Single Mode Fiber SMF Optic Transceiver

StarTech.com Cisco Meraki MA-SFP-10GB-LR Comp. SFP+ Module - 10GBASE-LR - 10GbE Gigabit Ethernet Single Mode Fiber SMF Optic Transceiver
The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

•
  Wavelength: 1310nm
•
  Maximum Data Transfer Rate: 10 Gbps
•
  Type: Single Mode Fiber
•
  Connection Type: LC Connector
•
  Maximum Transfer Distance: 10 km (6.2 mi)
•
  MTBF: 2,104,865 hours
•
  Power Consumption: Less than 1.2 Watts
•
  Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules


• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24


• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools


• TECHNICAL SPECS: 10GBASE-LR


• 10 Gbps


• Single Mode (SMF)


• LC Connector


• 1310nm


• Digital Diagnostic Monitoring (DDM)


• Distances up to 10km (6.2mi)


• 100% CISCO MERAKI MA-SFP-10GB-LR COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MS425 and others

Product Type: SFP+

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Country Of Origin: China

Brand Name: StarTech.com

Compatibility: MSA Compliant Cisco Meraki Switches: MS225 MX400 MS250 MS350 MS425

Form Factor: Hot-swappable

Manufacturer: StarTech.com

Product Name: Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR

Manufacturer Part Number: MASFP10GBLR

Manufacturer Website Address: http://www.startech.com

Packaged Quantity: 1

Limited Warranty: Lifetime

Weight (Approximate): 22.7 g

Ethernet Technology: 10 Gigabit Ethernet

Media Type Supported: Optical Fiber

Fiber Mode Supported: Single-mode

Total Number Of Ports: 1

Connector Type: LC

Network Technology: 10GBase-LR

Application/Usage: Optical Network

Interfaces/Ports Details: 1 x LC Duplex 10GBase-LR Network
