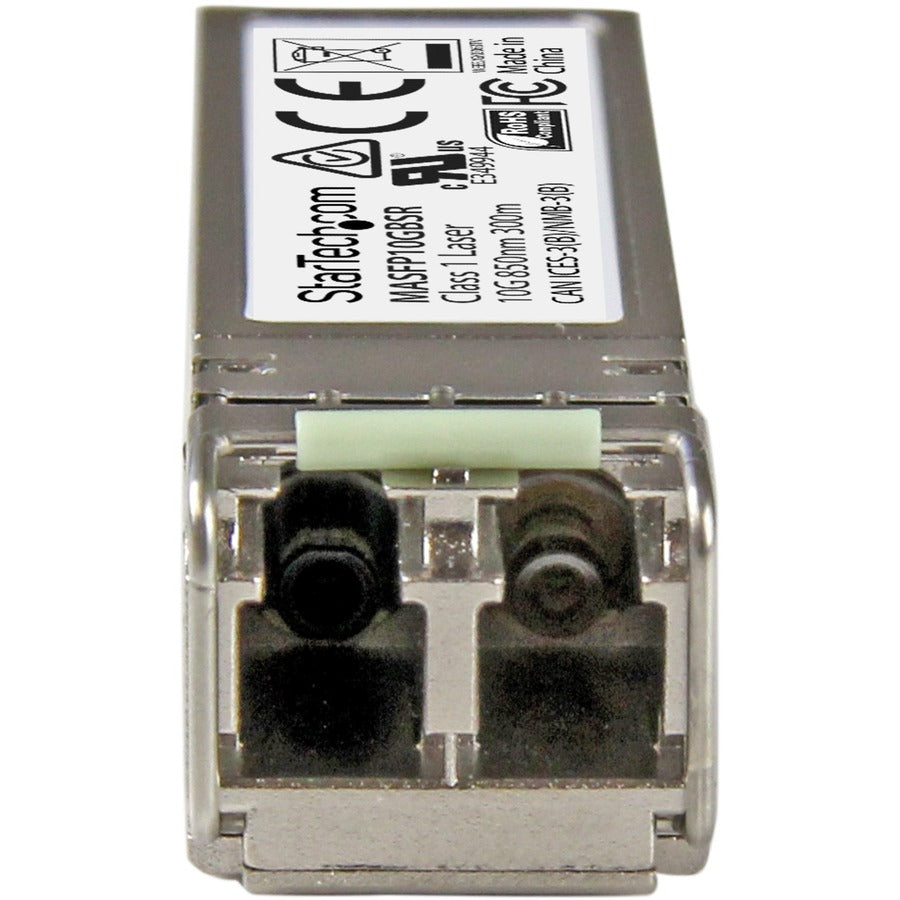

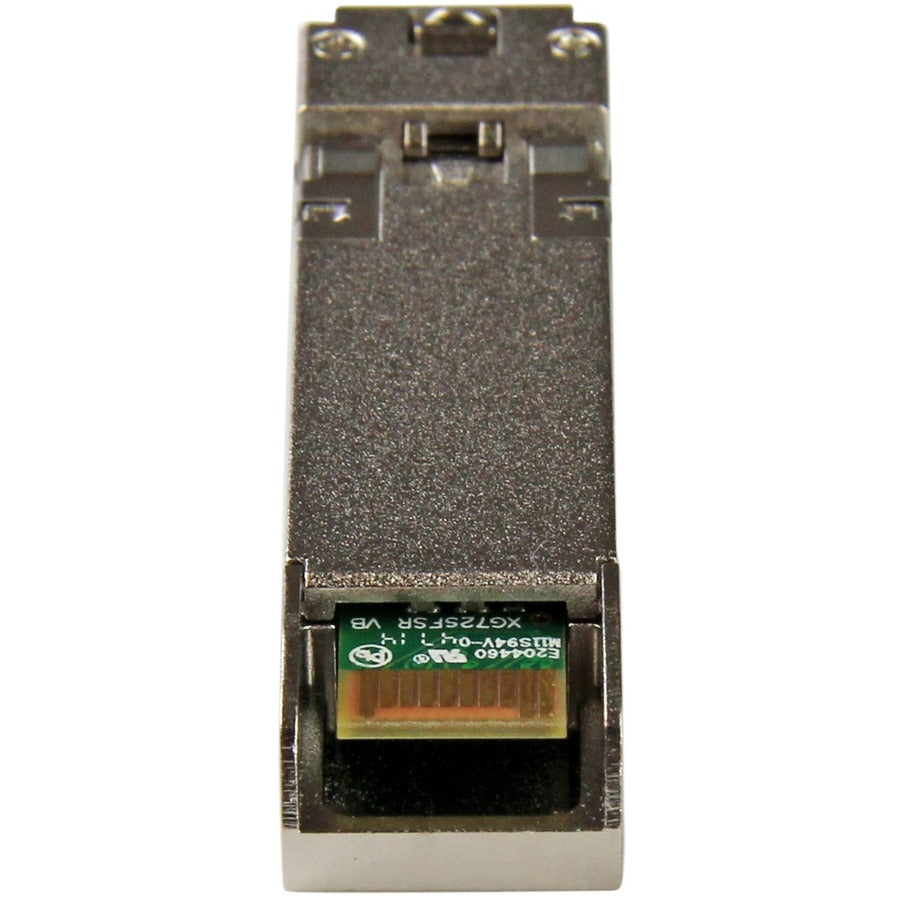

StarTech.com Cisco Meraki MA-SFP-10GB-SR Comp. SFP+ Module - 10GBASE-SR - 10GbE Gigabit Ethernet Multimode Fiber MMF Optic Transceiver

StarTech.com Cisco Meraki MA-SFP-10GB-SR Comp. SFP+ Module - 10GBASE-SR - 10GbE Gigabit Ethernet Multimode Fiber MMF Optic Transceiver
The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules


• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24


• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools


• TECHNICAL SPECS: 10GBASE-SR


• 10 Gbps


• Multi Mode (MMF)


• LC Connector


• 850nm


• Digital Diagnostic Monitoring (DDM)


• Distances up to 300m (984ft)


• 100% CISCO MERAKI MA-SFP-10GB-SR COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MS425 and others

Product Type: SFP+

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country Of Origin: China

Brand Name: StarTech.com

Compatibility: MSA Compliant Cisco Meraki Switches MS225 MX400 MS250 MS350 MS425

Form Factor: Hot-swappable

Manufacturer: StarTech.com

Product Name: Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ Transceiver Module - 10GBASE-SR

Manufacturer Part Number: MASFP10GBSR

Manufacturer Website Address: http://www.startech.com

Packaged Quantity: 1

Limited Warranty: Lifetime

Weight (Approximate): 17 g

Ethernet Technology: 10 Gigabit Ethernet

Media Type Supported: Optical Fiber

Fiber Mode Supported: Multi-mode

Total Number Of Ports: 1

Connector Type: LC

Network Technology: 10GBase-SR

Application/Usage: Optical Network

Interfaces/Ports Details: 1 x LC Duplex 10GBase-SR Network
