StarTech.com Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

StarTech.com Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

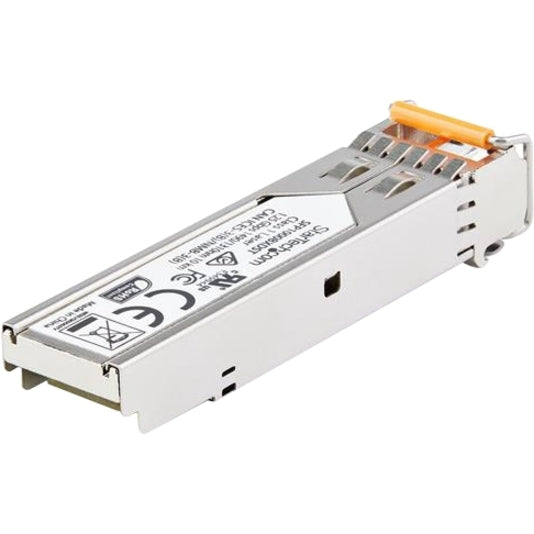

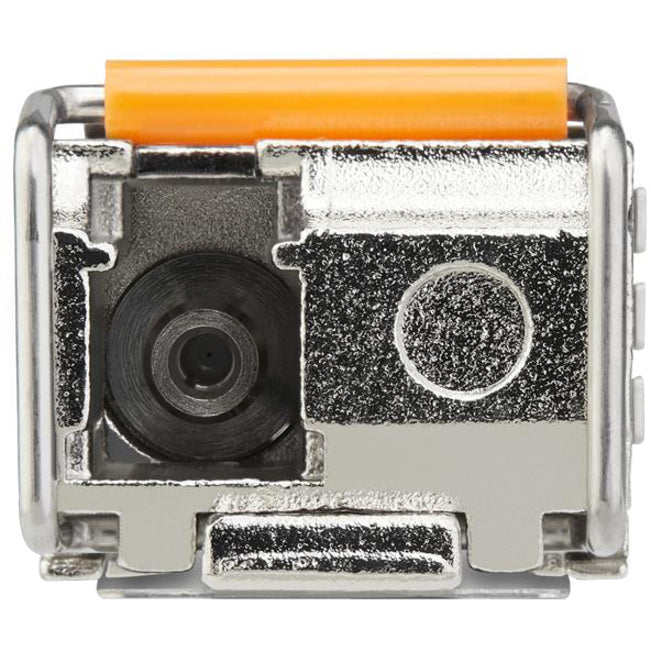

The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000Base-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nmTx/1490nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,713,222 hours
• Power Consumption: < 1.3W
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

• 100% DELL EMC SFP-1G-BX10-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity


• INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two


• TECHNICAL SPECS: 1000BASE-BX-U


• 1Gbps


• 10G Bi-Directional Upstream


• Single Mode (SMF)

Product Type: SFP (mini-GBIC)

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Country Of Origin: China

Brand Name: StarTech.com

Compatibility: MSA Compliant

Form Factor: Hot-swappable

Manufacturer: StarTech.com

Product Name: Dell EMC SFP-1G-BX10-U Compatible SFP Transceiver Module - 1000Base-BX10

Manufacturer Part Number: SFP1GBX10UES

Manufacturer Website Address: http://www.startech.com

Packaged Quantity: 1

Limited Warranty: Lifetime

Ethernet Technology: Gigabit Ethernet

Media Type Supported: Optical Fiber

Fiber Mode Supported: Single-mode

Total Number Of Ports: 1

Connector Type: LC

Network Technology: 1000BASE-BX10-U

Application/Usage: Optical Network

Interfaces/Ports Details: 1 x LC Duplex 1000BASE-BX10-U Network
