StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC ...
Description
Description
StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

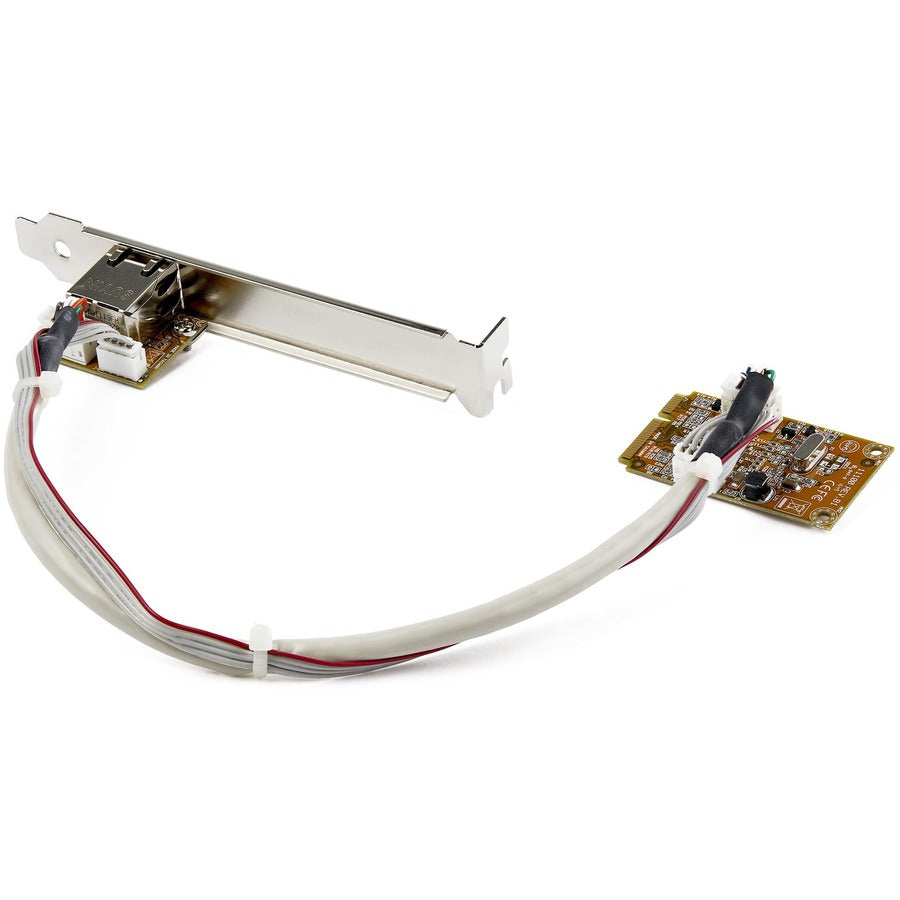

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

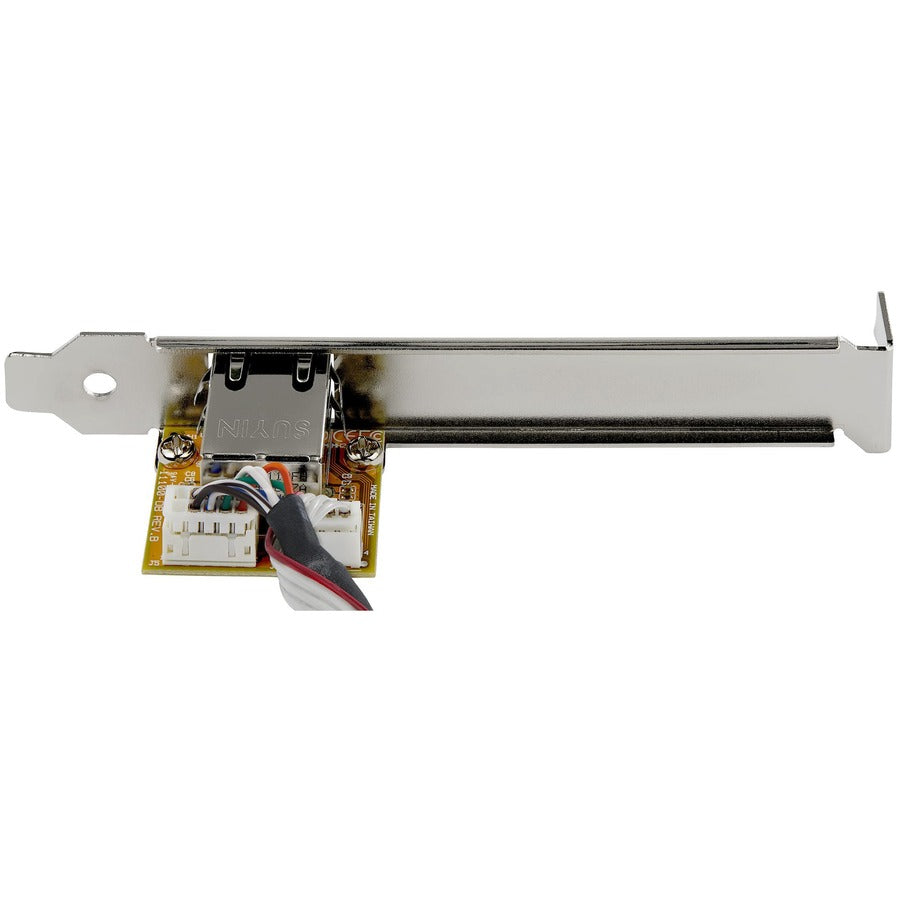

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Compliant with PCI Express Mini Card specification 1.1
- IEEE 802.3x Full Duplex Flow Control support
- Supports Full and Half duplex operating modes
- Microsoft NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support
- Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction
- IEEE 802.1Q VLAN Tagging support
- Jumbo Frame support up to 9k
- Crossover Detection & Auto-Correction (Auto MDIX)
- Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
- One 10/100/1000Mbps compatible RJ-45 Ethernet port
| Product Type: Gigabit Ethernet Card |
| Environmentally Friendly: Yes |
| Chipset Manufacturer: Realtek |

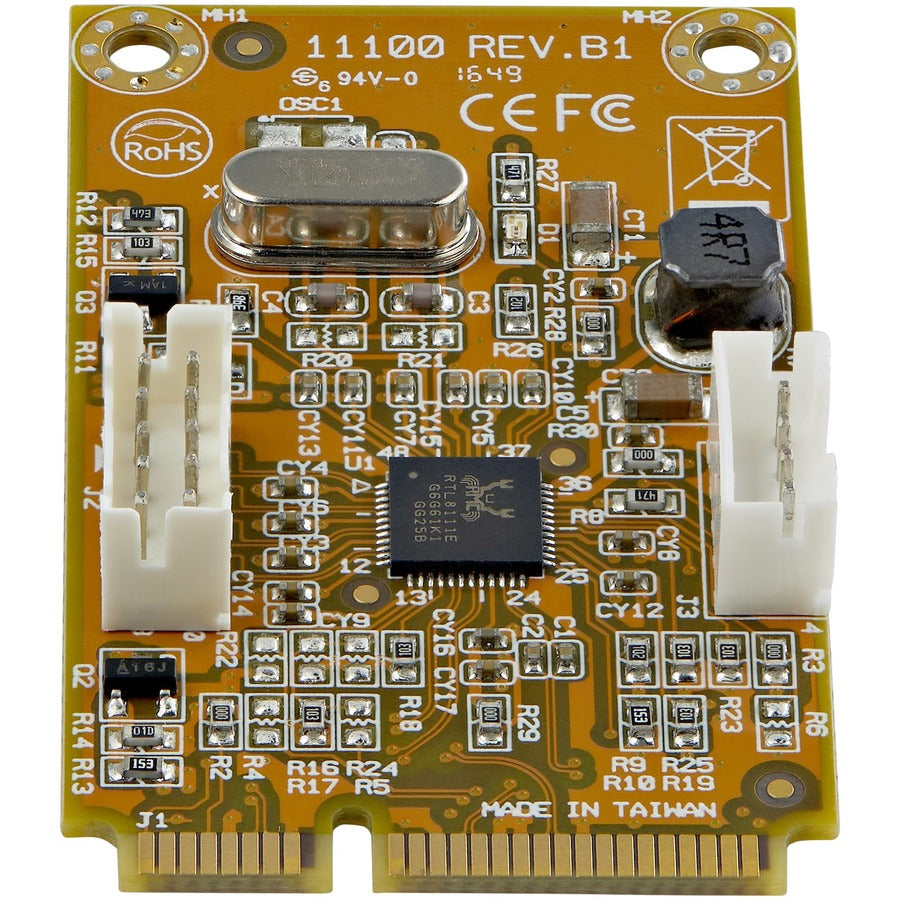

| Chipset Model: RTL8111E |
| Number Of Network (Rj 45) Ports: 1 |
| Media Type Supported: Twisted Pair |
| Total Number Of Ports: 1 |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: Taiwan |
| Brand Name: StarTech.com |
| Form Factor: Plug-in Card |
| Manufacturer: StarTech.com |
| Product Name: Mini PCI Express Gigabit Ethernet Network Adapter NIC Card |
| Network Technology: 10/100/1000Base-T |
| Manufacturer Part Number: ST1000SMPEX |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |

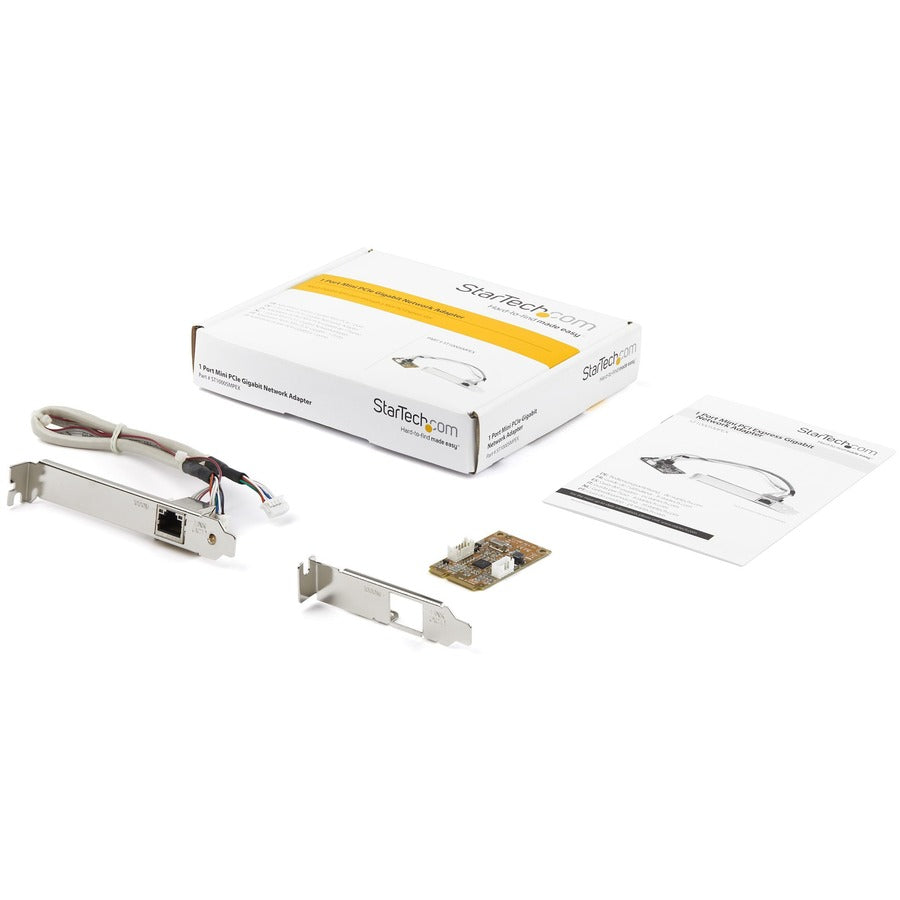

Package Contents:
|
| Host Interface: Mini PCI Express |
| Thickness: 0.16" (4.06 mm) |
| Weight (Approximate): 0.20 oz (5.67 g) |
| Feature1: Compliant with PCI Express Mini Card specification 1.1 |
| Feature2: IEEE 802.3x Full Duplex Flow Control support |
| Feature3: Supports Full and Half duplex operating modes |
| Feature4: Microsoft NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support |
| Feature5: Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction |
| Feature6: IEEE 802.1Q VLAN Tagging support |
| Feature7: Jumbo Frame support up to 9k |
| Feature8: Crossover Detection & Auto-Correction (Auto MDIX) |
| Feature9: Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections |
| Feature10: One 10/100/1000Mbps compatible RJ-45 Ethernet port |
