StarTech.com MSA Uncoded Compatible 2m QSFP+ to 4x SFP+ Direct Attach Breakout Cable - 40GbE - QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power

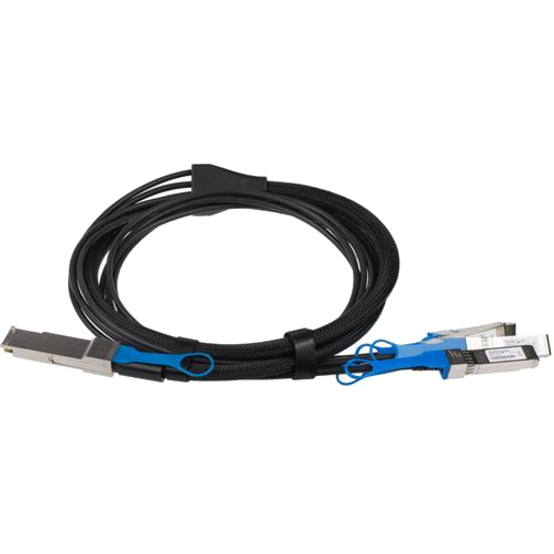

The QSFP4SFPPC2M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 2 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP CablesAll StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- TECHNICAL SPECS: 2m (6.6ft)
- 40 Gbps
- Passive Twinax (Copper)
- 1x QSFP+ to 4x SFP+ Pluggable Connector
- 100 Ohm Impedance
- 30 AWG Wire Gauge
- PVC Cable Jacket
- Hot swappable
- MSA Compliant
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
| Product Type: Network Cable |
| Environmentally Friendly: Yes |
| Cable Type: Twinaxial |
| Connector Type On First End: QSFP+ Network - Male |
| Connector Type On Second End: SFP+ Network - Male |
| American Wire Gauge: 30 AWG |
| Jacket Material: Polyvinyl Chloride (PVC) |
| Product Color: Black |
| Color Family: Black |
| Connector On First End Details: 1 x QSFP+ Network - Male |
| Connector On Second End Details: 4 x SFP+ Network - Male |
| Product Material: Copper |
| Connector Gender On First End: Male |
| Connector Gender On Second End: Male |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: China |
| Brand Name: StarTech.com |
| Features: Hot-swappable |
| Manufacturer: StarTech.com |
| Product Name: Twinaxial Network Cable |
| Data Transfer Rate: 40 Gbit/s |
| Device Supported: Router |
| Manufacturer Part Number: QSFP4SFPPC2M |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |
| Limited Warranty: Lifetime |
| Cable Length: 6.6 ft (2 m) |
| Weight (Approximate): 12.20 oz (346 g) |
| Feature1: WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers |
| Feature2: OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24. |
| Feature3: DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance. |
| Feature4: TECHNICAL SPECS: 2m (6.6ft) |
| Feature5: 40 Gbps |
| Feature6: Passive Twinax (Copper) |
| Feature7: 1x QSFP+ to 4x SFP+ Pluggable Connector |
| Feature8: 100 Ohm Impedance |
| Feature9: 30 AWG Wire Gauge |
| Feature10: PVC Cable Jacket |
| Feature11: Hot swappable |
| Feature12: MSA Compliant |
| Feature13: MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules |
