StarTech.com MSA Uncoded SFP Transceiver Module - 1000BASE-BX - 1GbE Gigabit Ethernet BiDi Fiber (SMF)
StarTech.com MSA Uncoded SFP Transceiver Module - 1000BASE-BX - 1GbE Gigabit Ethernet BiDi Fiber (SMF) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description

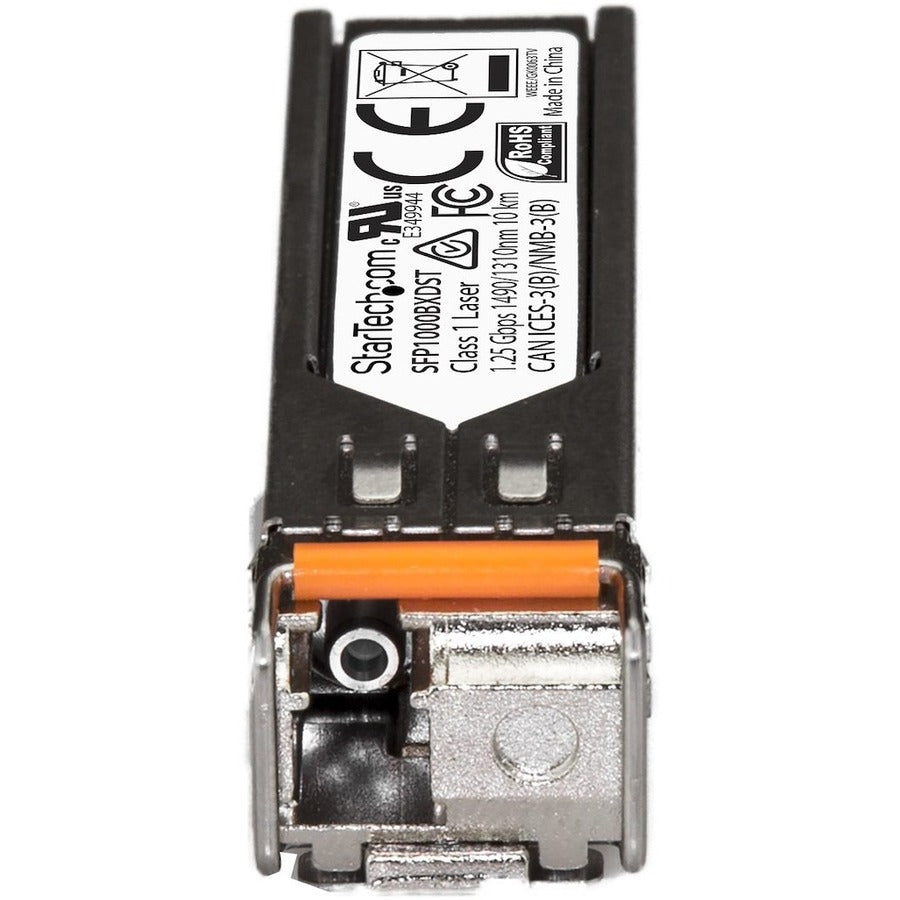

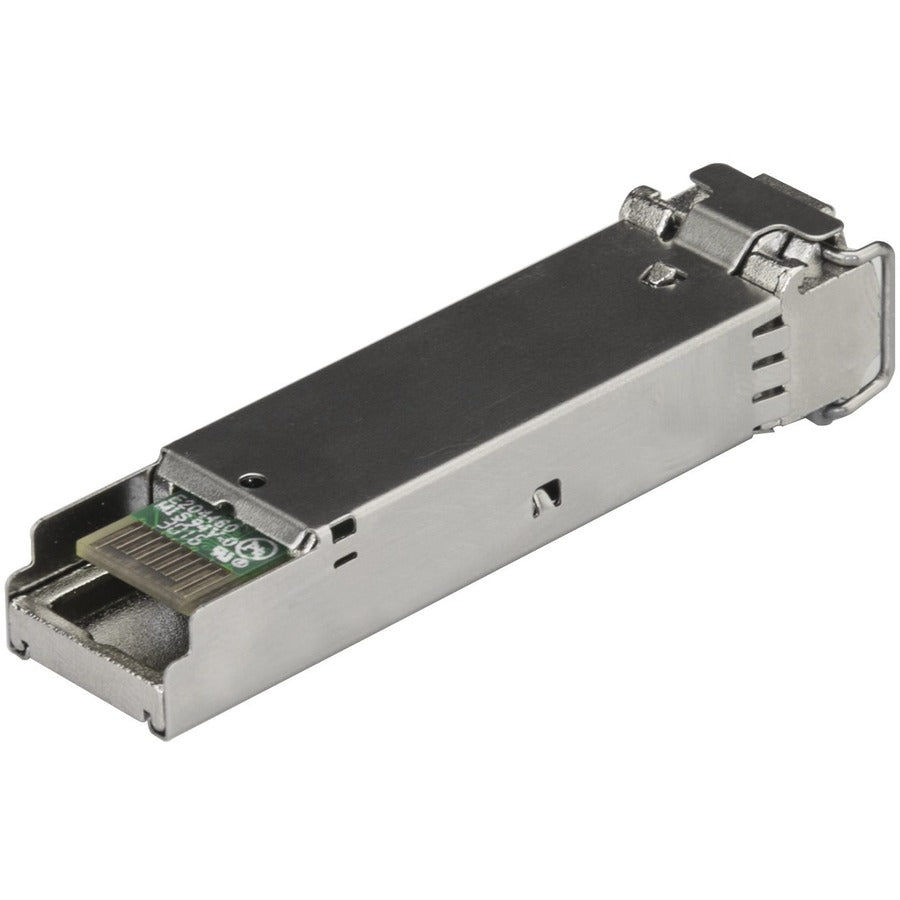

StarTech.com MSA Uncoded SFP Transceiver Module - 1000BASE-BX - 1GbE Gigabit Ethernet BiDi Fiber (SMF)
The SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1490nmTx/1310nmRx
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- Power Consumption: Less than 1 Watt
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24.
- TECHNICAL SPECS: 1000BASE-BX
- 1Gbps
- 1G Bi-Directional Downstream
- Single Mode (SMF)
- LC Connector
- 1490nmTx/1310nmRx
- Digital Diagnostic Monitoring (DDM)
- Distances up to 10km (6.2mi)
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
Product Type: SFP (mini-GBIC) |
Environmentally Friendly: Yes |
Ethernet Technology: 1.25 Gigabit Ethernet |
Media Type Supported: Optical Fiber |
Fiber Mode Supported: Single-mode |
Total Number Of Ports: 1 |
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Country Of Origin: China |
Connector Type: LC |
Brand Name: StarTech.com |
Compatibility: MSA Compliant |
Form Factor: Hot-swappable |
Manufacturer: StarTech.com |
Product Name: SFP (mini-GBIC) Module |
Network Technology: 1000Base-BX |
Application/Usage: Data Networking |
Manufacturer Part Number: SFP1000BXDST |
Manufacturer Website Address: http://www.startech.com |
Packaged Quantity: 1 Each |
Interfaces/Ports Details: 1 x LC Duplex 1000Base-BX Network |
Limited Warranty: Lifetime |
Weight (Approximate): 0.70 oz (19.84 g) |
Feature1: WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules |
Feature2: LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24. |
Feature3: TECHNICAL SPECS: 1000BASE-BX |
Feature4: 1Gbps |
Feature5: 1G Bi-Directional Downstream |
Feature6: Single Mode (SMF) |
Feature7: LC Connector |
Feature8: 1490nmTx/1310nmRx |
Feature9: Digital Diagnostic Monitoring (DDM) |
Feature10: Distances up to 10km (6.2mi) |
Feature11: INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two. |
Feature12: MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity |
