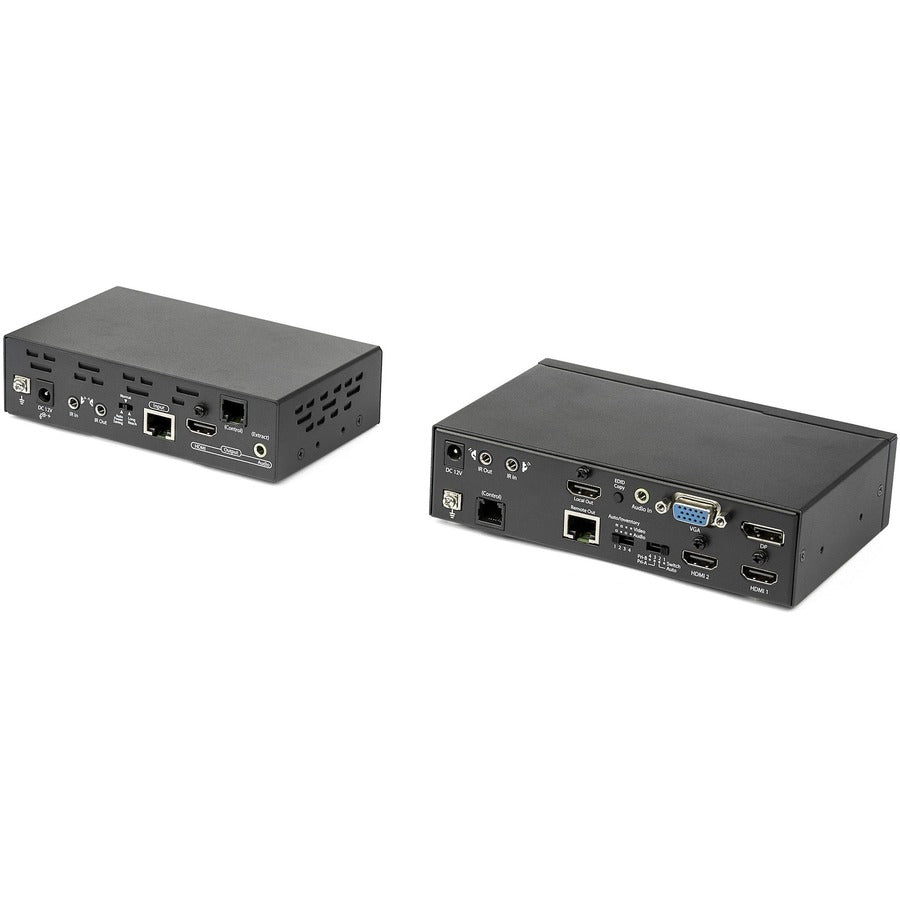

StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler - DisplayPort HDMI and VGA Over CAT6 or CAT5e

StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler - DisplayPort HDMI and VGA Over CAT6 or CAT5e

This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).

Seamless Integration and Operation

The HDBaseT extender's built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don't need adapters or scalers, or a video switch.

Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.

Built-In Video Scaling

This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that's connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.

High-Definition 1080p Video at 230 Feet (70 Meters)

The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.

The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.

• Get crystal-clear picture quality at impressive distances with 1080 resolution at up to 230 ft.


• Ensure perfect video connectivity, every time, with a built-in video scaler


• Save hassle and expense with a switch and extender in one device, that accommodates VGA, DP and HDMI inputs

Product Type: Video Extender Transmitter/Receiver
Graphics Modes: WUXGA
Environmentally Friendly: Yes
Maximum Video Resolution: 1920 x 1200
Twisted Pair Cable Standard: Category 6
Maximum Operating Distance: 229.66 ft (70000 mm)
Number Of Network (Rj 45) Ports: 2
Network (Rj 45): Yes
Displayport: Yes
Number Of Hdmi Inputs: 2
Number Of Hdmi Outputs: 2
Vga In: Yes
Hdmi In: Yes
Hdmi Out: Yes
Media Type Supported: Twisted Pair
Number Of Output Devices Supported: 1
Number Of Input Devices Supported: 4
Transmitter Height: 2.60" (66.04 mm)
Transmitter Width: 2.40" (60.96 mm)
Transmitter Depth: 4.20" (106.68 mm)
Receiver Height: 2.60" (66.04 mm)
Receiver Width: 2.40" (60.96 mm)
Receiver Depth: 4.20" (106.68 mm)
Transmitter Weight (Approximate): 4.41 lb (2000 g)
Receiver Weight (Approximate): 4.41 lb (2000 g)
Number Of Vga Inputs: 1
Taa Compliant: Yes
Product Color: Black
Color Family: Black
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country Of Origin: Taiwan
Connectivity Technology: Wired
Brand Name: StarTech.com
Form Factor: Desktop
Manufacturer: StarTech.com
Product Name: Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
Manufacturer Part Number: ST121HDBTSC
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1 Kit

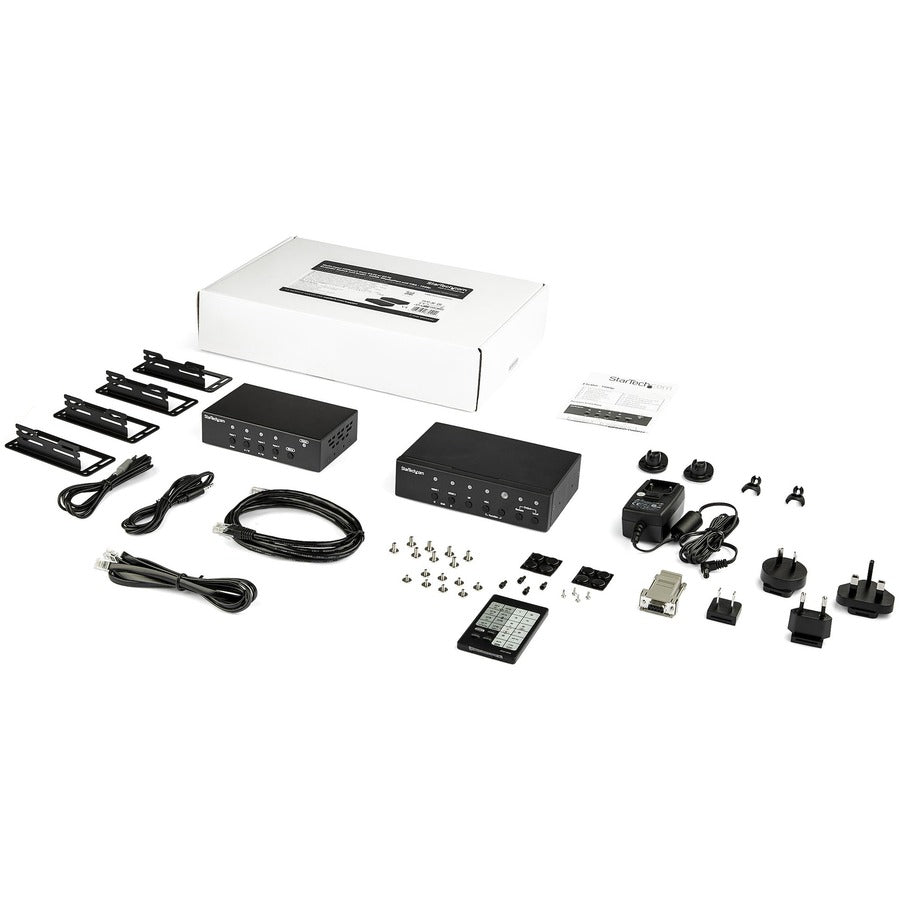

Package Contents: 1 x HDBaseT Transmitter 1 x HDBaseT Scaler Receiver 1 x Remote Control 1 x RJ-11 to RS-232 Adapter 1 x CAT5 Cable 1 x RJ-11 Cable 2 x Sets of Mounting Brackets 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 x IR Blaster 1 x IR Receiver 2 x Sets of Rubber Feet 1 x Quick-Start Guide
Limited Warranty: 2 Year
Feature1: Get crystal-clear picture quality at impressive distances with 1080 resolution at up to 230 ft.
Feature2: Ensure perfect video connectivity, every time, with a built-in video scaler
Feature3: Save hassle and expense with a switch and extender in one device, that accommodates VGA, DP and HDMI inputs
