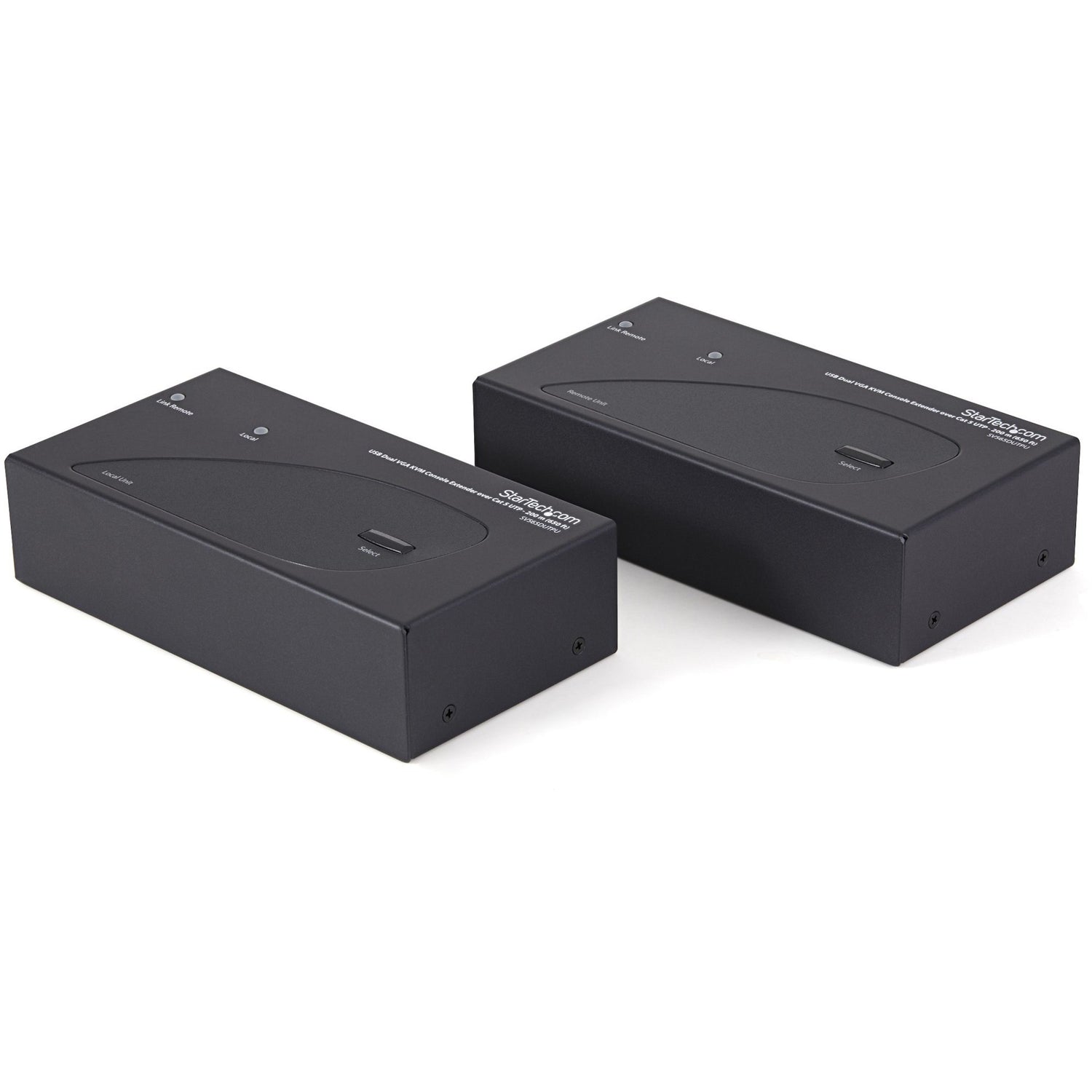

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
- Intuitive hot-key commands for fine-tuning video
- Supports most combo keyboard and mouse sets (including Wireless)
- KVM console connections available on both the local and remote end
- Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
- Can be used with a single computer or connected to an existing KVM switch
- Dual VGA KVM extender at 1920x1200 resolution
| Product Type: KVM Console/Extender |
| Environmentally Friendly: Yes |
| Maximum Video Resolution: 1920 x 1200 |
| Graphic Mode: WUXGA |
| Maximum Operating Distance: 650 ft (198120 mm) |
| Usb: Yes |
| Vga: Yes |
| Number Of Network (Rj 45) Ports: 4 |
| Network (Rj 45): Yes |
| Number Of Usb Ports: 4 |
| Number Of Vga Ports: 8 |
| Kvm Technology: Analog |
| Number Of Computers Supported: 2 |
| Number Of Local Users Supported: 2 |
| Transmitter Height: 1.60" (40.64 mm) |
| Transmitter Width: 3.10" (78.74 mm) |
| Transmitter Depth: 6.10" (154.94 mm) |
| Receiver Height: 1.60" (40.64 mm) |
| Receiver Width: 3.10" (78.74 mm) |
| Receiver Depth: 6.10" (154.94 mm) |
| Transmitter Weight (Approximate): 1.18 lb (535 g) |
| Receiver Weight (Approximate): 1.18 lb (535 g) |
| Taa Compliant: Yes |
| Product Color: Black |
| Color Family: Black |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: Taiwan |
| Connectivity Technology: Wired |
| Brand Name: StarTech.com |
| Input Voltage Range: 110V AC to 240V AC |
| Form Factor: Desktop |
| Manufacturer: StarTech.com |
| Product Name: USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m |
| Power Consumption: 5.40 W |
| Input Voltage: 240 V AC |
| Manufacturer Part Number: SV565DUTPU |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Kit |
Package Contents:
|
| Limited Warranty: 3 Year |
| Feature1: Intuitive hot-key commands for fine-tuning video |
| Feature2: Supports most combo keyboard and mouse sets (including Wireless) |
| Feature3: KVM console connections available on both the local and remote end |
| Feature4: Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables |
| Feature5: Can be used with a single computer or connected to an existing KVM switch |
| Feature6: Dual VGA KVM extender at 1920x1200 resolution |
