StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650
Description
Description
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

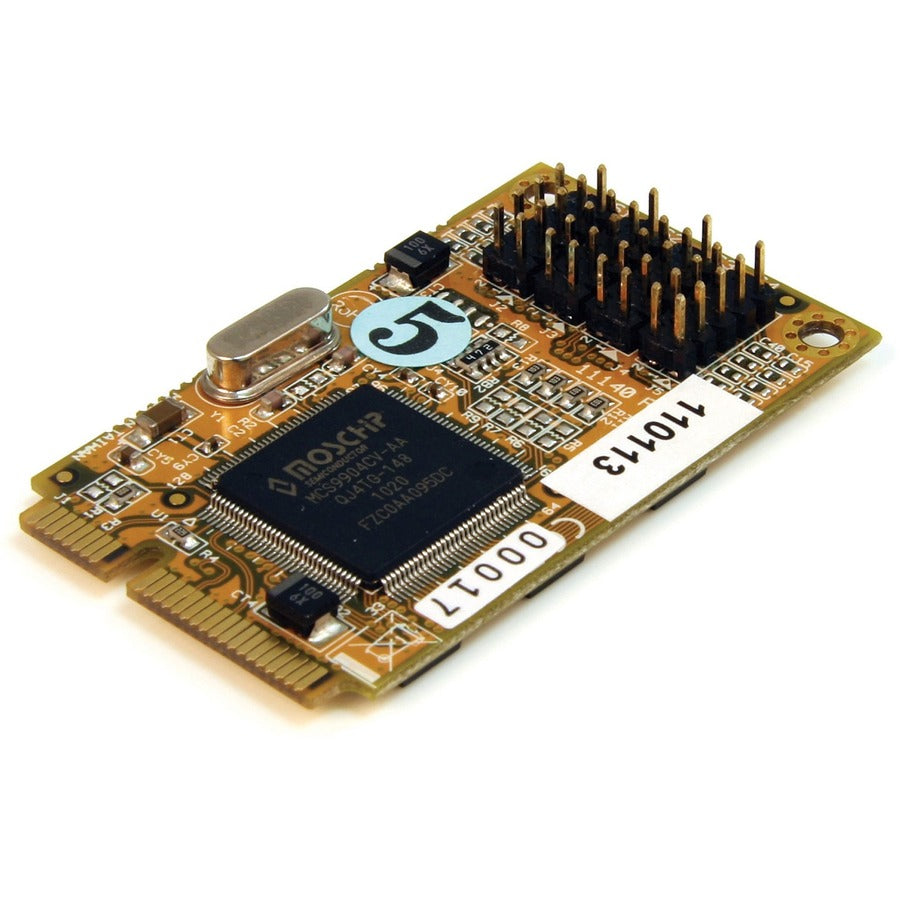

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
More from the Manufacturer
- Compliant with PCI Express base specifications revision 1.1
- Automated out-of-band hardware flow control using RTS/CTS
- In-band software flow control, using programmable Xon/Xoff in both directions
- Native single-chip, single lane PCI Express
- 256-byte deep FIFO per transmitter and receiver
- Includes 4x 30cm IDC to DB9 serial cables
- High Performance 16650 UART
- Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
| Product Type: Multiport Serial Adapter |
| Environmentally Friendly: Yes |
| Card Length: Full-length |
| Maximum Data Transfer Rate: 7.20 Mbit/s |
| Taa Compliant: Yes |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country Of Origin: Taiwan |
| Brand Name: StarTech.com |
| Form Factor: Plug-in Card |
| Manufacturer: StarTech.com |
| Product Name: 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART |
| Manufacturer Part Number: MPEX4S552 |
| Manufacturer Website Address: http://www.startech.com |
| Packaged Quantity: 1 Each |
| Ports Expandability: 4 x DB-9 RS-232 - Serial |
Package Contents:
|
| Limited Warranty: Lifetime |
| Host Interface: Mini PCI Express |
| Weight (Approximate): 5.30 oz (150.25 g) |
| Feature1: Compliant with PCI Express base specifications revision 1.1 |
| Feature2: Automated out-of-band hardware flow control using RTS/CTS |
| Feature3: In-band software flow control, using programmable Xon/Xoff in both directions |
| Feature4: Native single-chip, single lane PCI Express |
| Feature5: 256-byte deep FIFO per transmitter and receiver |
| Feature6: Includes 4x 30cm IDC to DB9 serial cables |
| Feature7: High Performance 16650 UART |
| Feature8: Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps |
